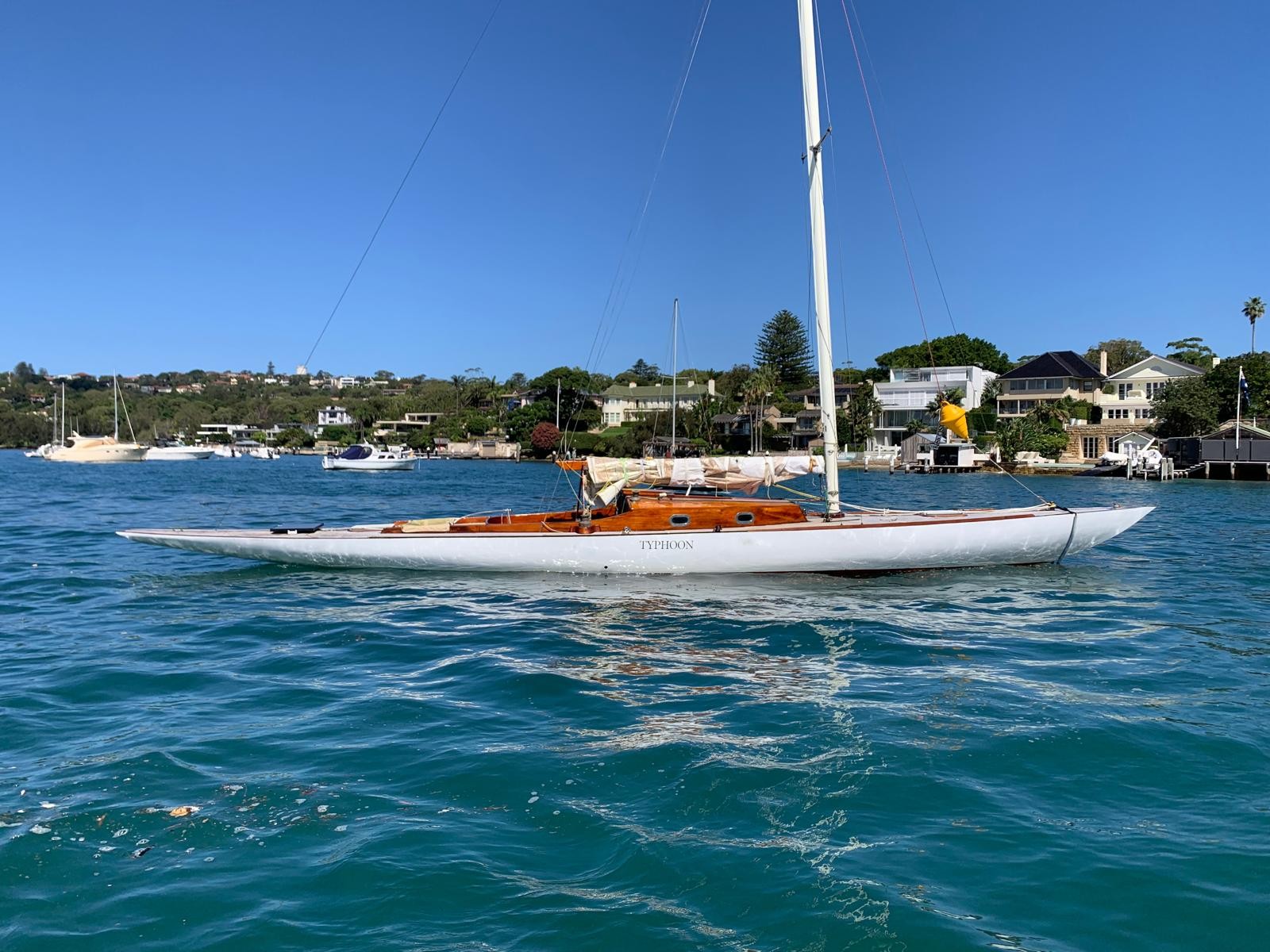

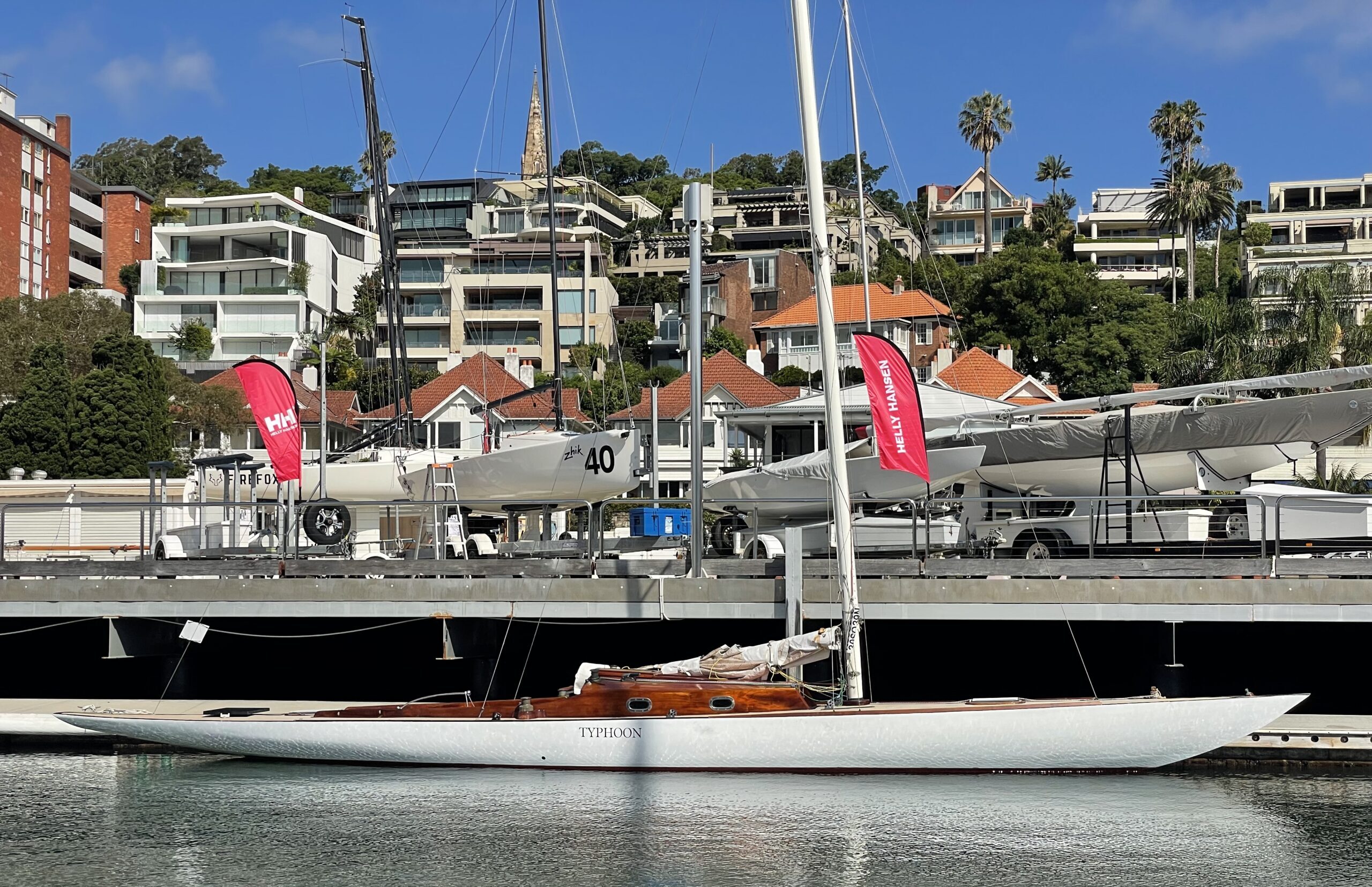

Classic, fast cruising easily handled yacht!

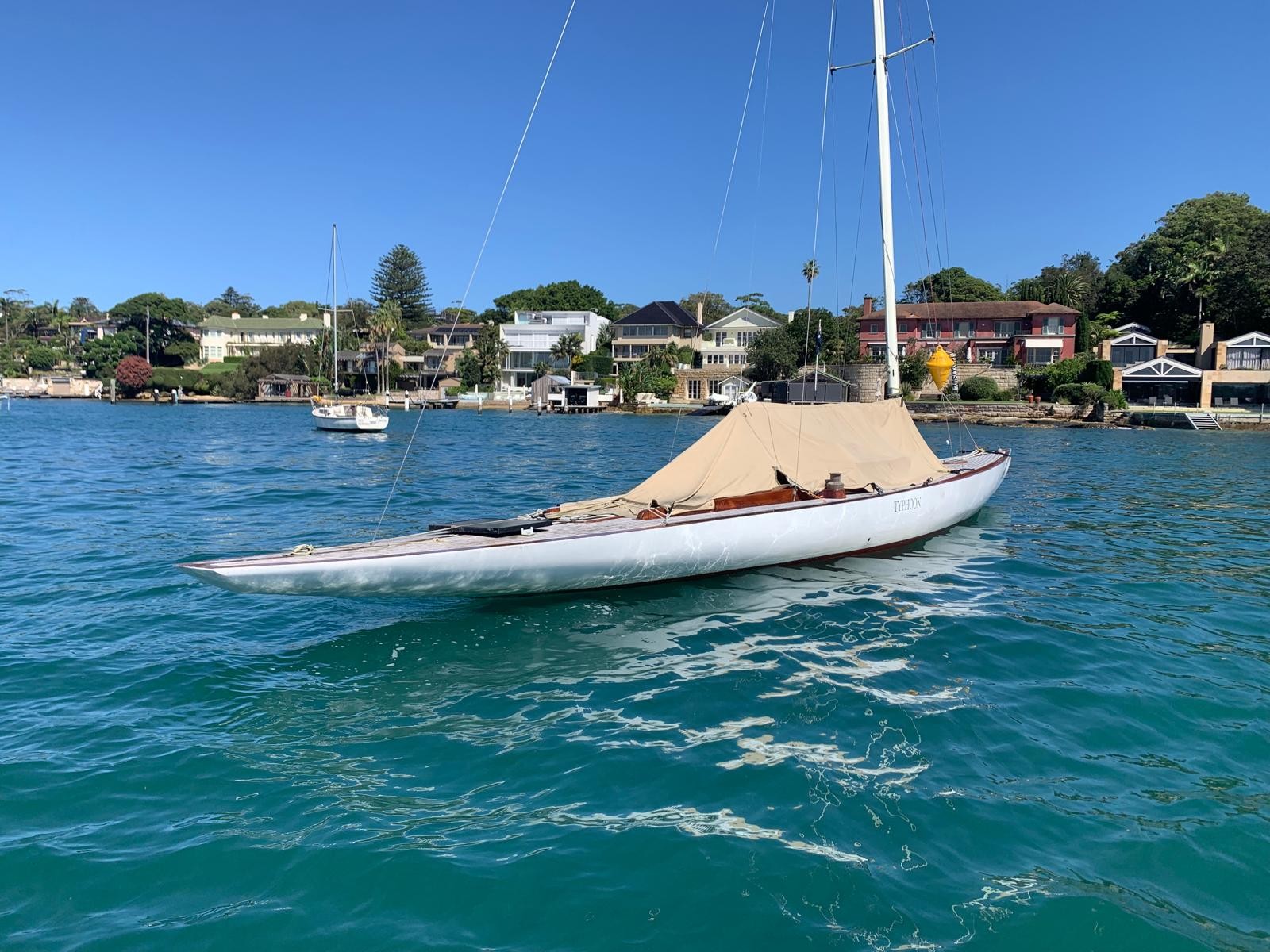

The “30 Square Metre” is a reference to a specific class. They are all very similar is shape. The result is a classic, fast-cruising, easily handled boat, known for their elegant lines and seaworthiness. The “Square Metre Rule” was adopted by the Royal Swedish YC in 1908. Typhoon is a very nice example, undergoing a substantial refit in June 2021 at Deagon Slipways in Brisbane and then sailed on her own bottom to Sydney. The inclusion of a diesel motor and replacement of the original fit out with settee bunks, make her a great harbour racer and weekend cruiser. An inspection of this classic yacht will not disappoint.
Boat Specs
| Type: | 30 Sqaure Built |
| Year: | 1939 |
| Length: | 13.50m |
| Beam: | 2.10m |
| Draft: | 1.90m |
| Displacement: | 3,200 kg (approx) |
| Builder: | Les Steel, Port Macquarie NSW |
| Location: | Sydney |
| Price: | $65,000 |
Boat Inventory
- Reference Number
- Typhoon
- Make
- 30 Square Built
- Hull Material
- Oregon on Spotted Gum ribs, Copper fastened. Sanded and re-splined in 2021.
- Length
- 13.50
- Price
- $65,000
- Region
- Sydney
- Location
- Sydney NSW, Australia
- Vessel Name
- Typhoon
- Launch Year
- 1939
- Beam
- 2.10m
- Draft
- 1.90m
- Displacement
- 3,200kg

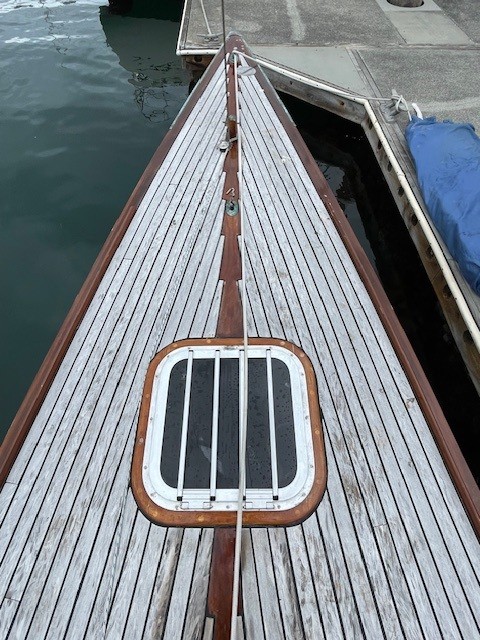

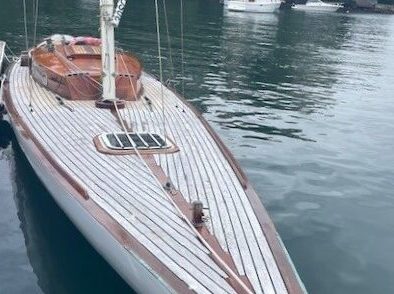

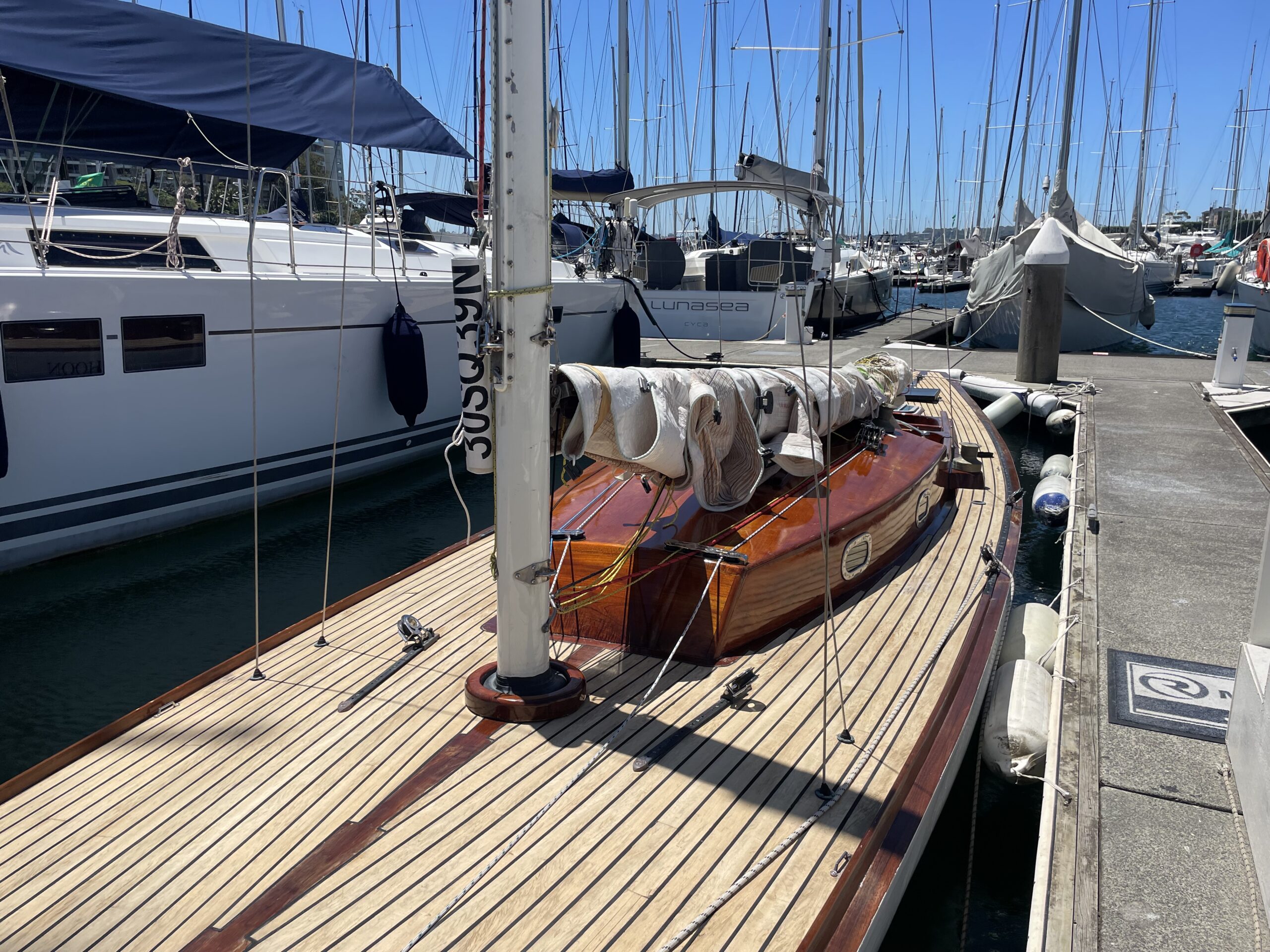

- Deck Material
- Marine grade plywood on Oregon beams with 12mm Beech and Teak deck.
- Keel / balast
- Lead.
- HIN
- AUWWA205821V2.
- Builder
- Les Steel, Port Macquarie NSW
- Registration Number
- 30SQ39N.
- Engine Make
- Nanni N2.10

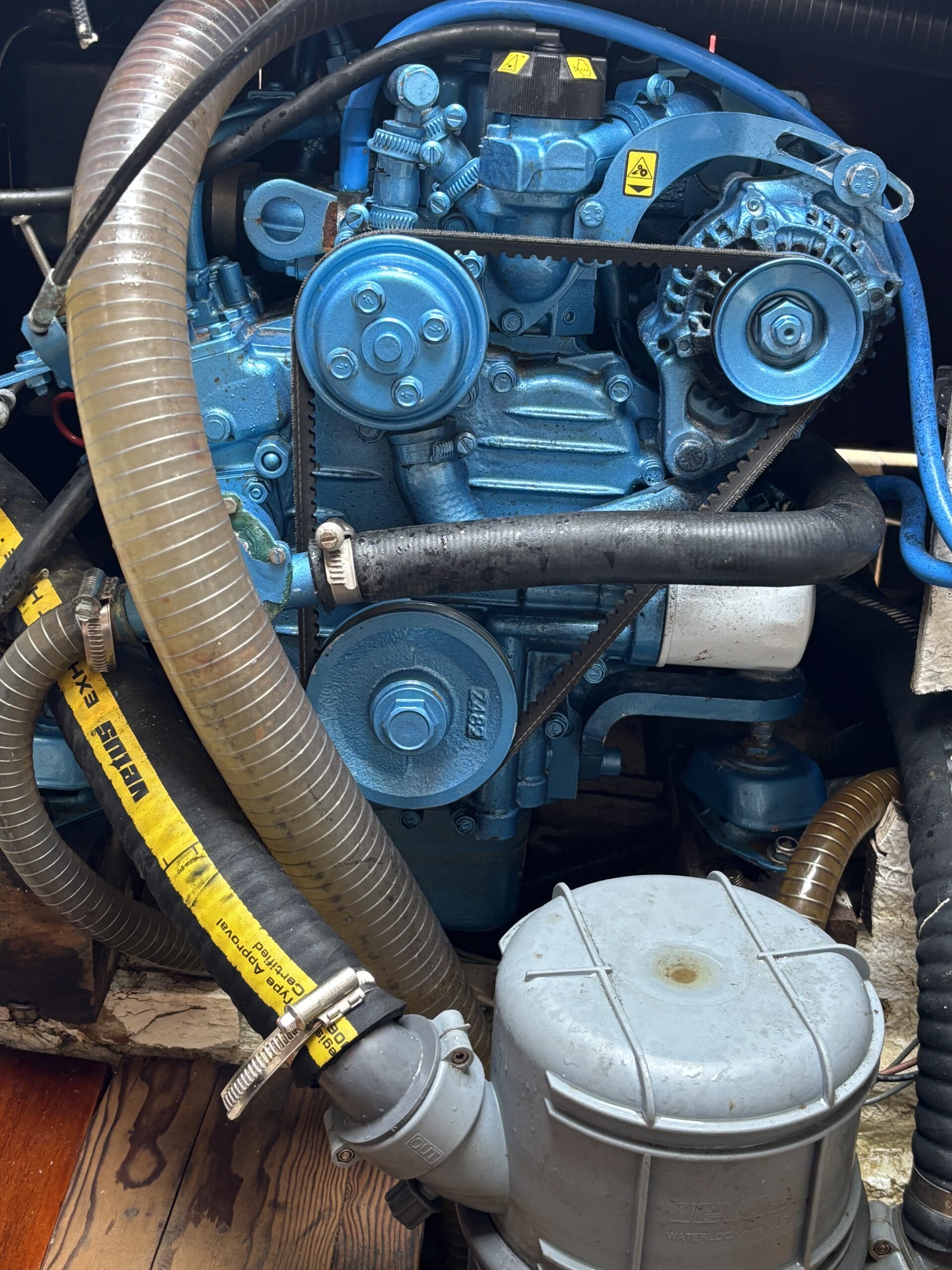

- Engine

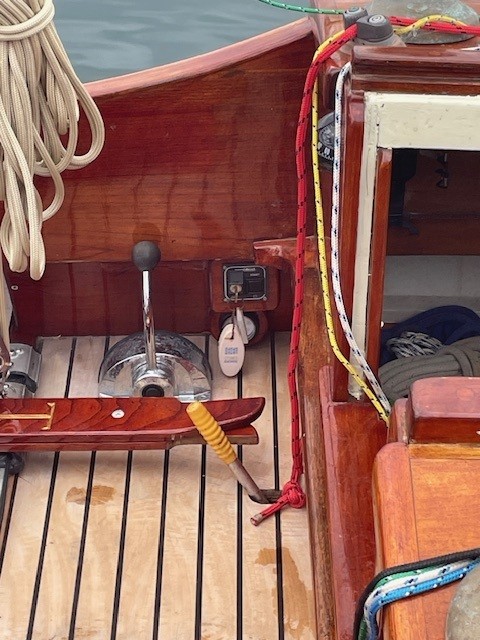

New in 2021 - Nanni N2.10 – 10 hsp Diesel (NR: 4LA5440 KTA20071858 Code: N2010E171). Gear Box is a Twin Disc 2:0, Model: TMC40PAC, Serial: 2463050.
- No of Engines
- 1
- Engine Hours
- 200 hrs approx
- Horsepower
- 10 hsp
- Fuel Capacity
- 20 Ltrs
- Fuel Type
- Diesel
- Propulsion
- 2 bladed 13 x 10R folding propellor on a 19mm duplex shaft. New Cutless bearings 2021.

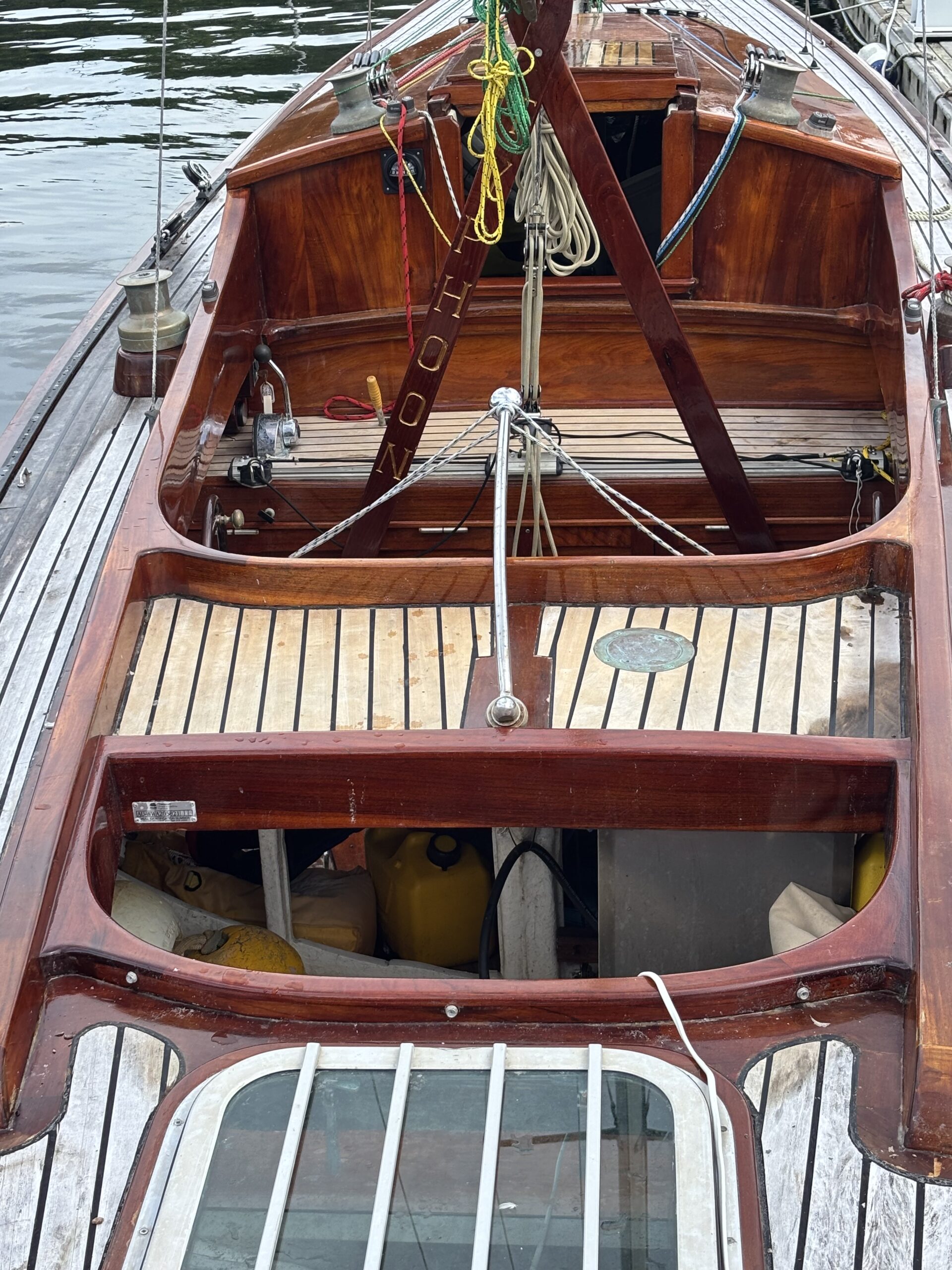

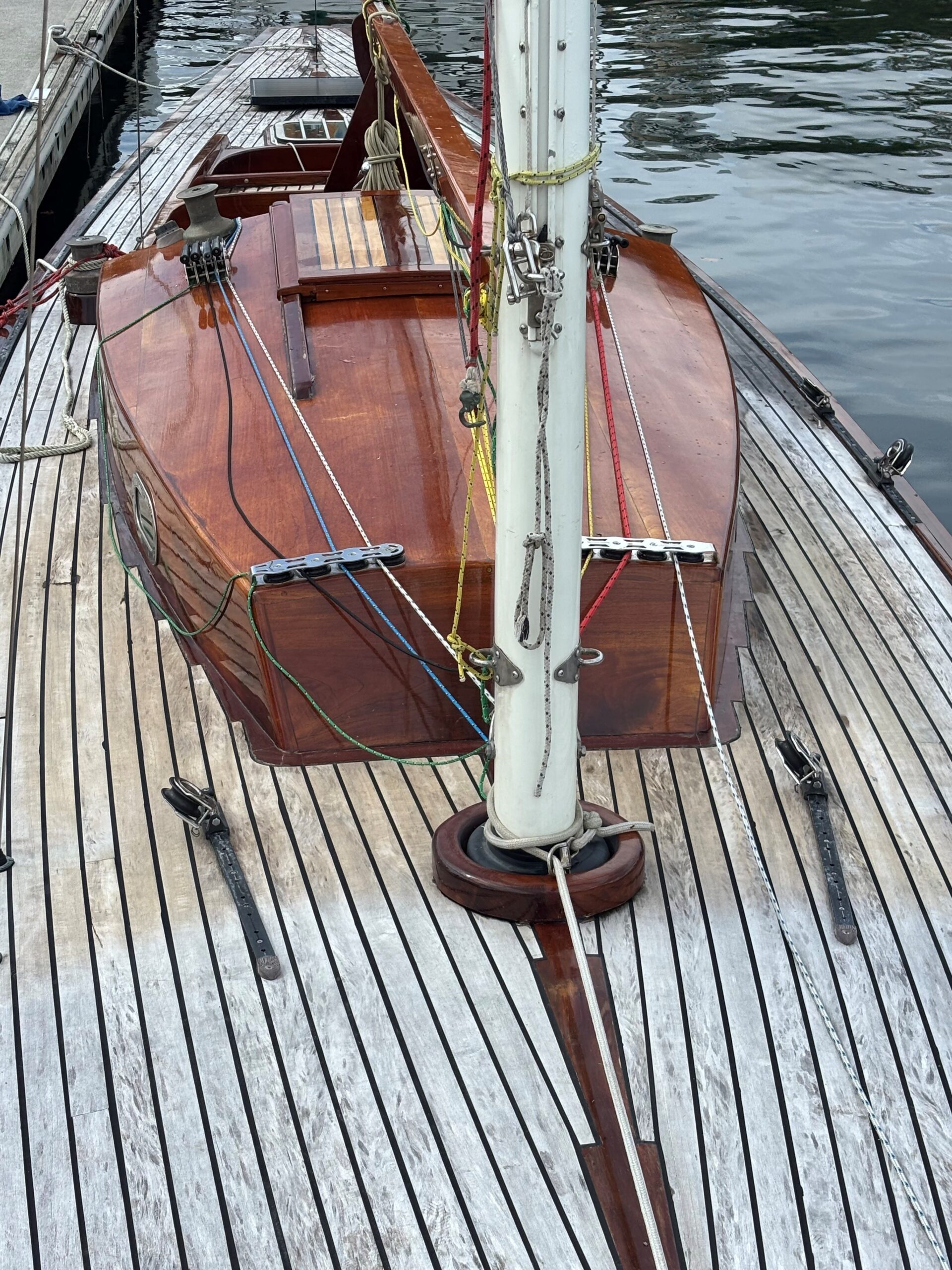

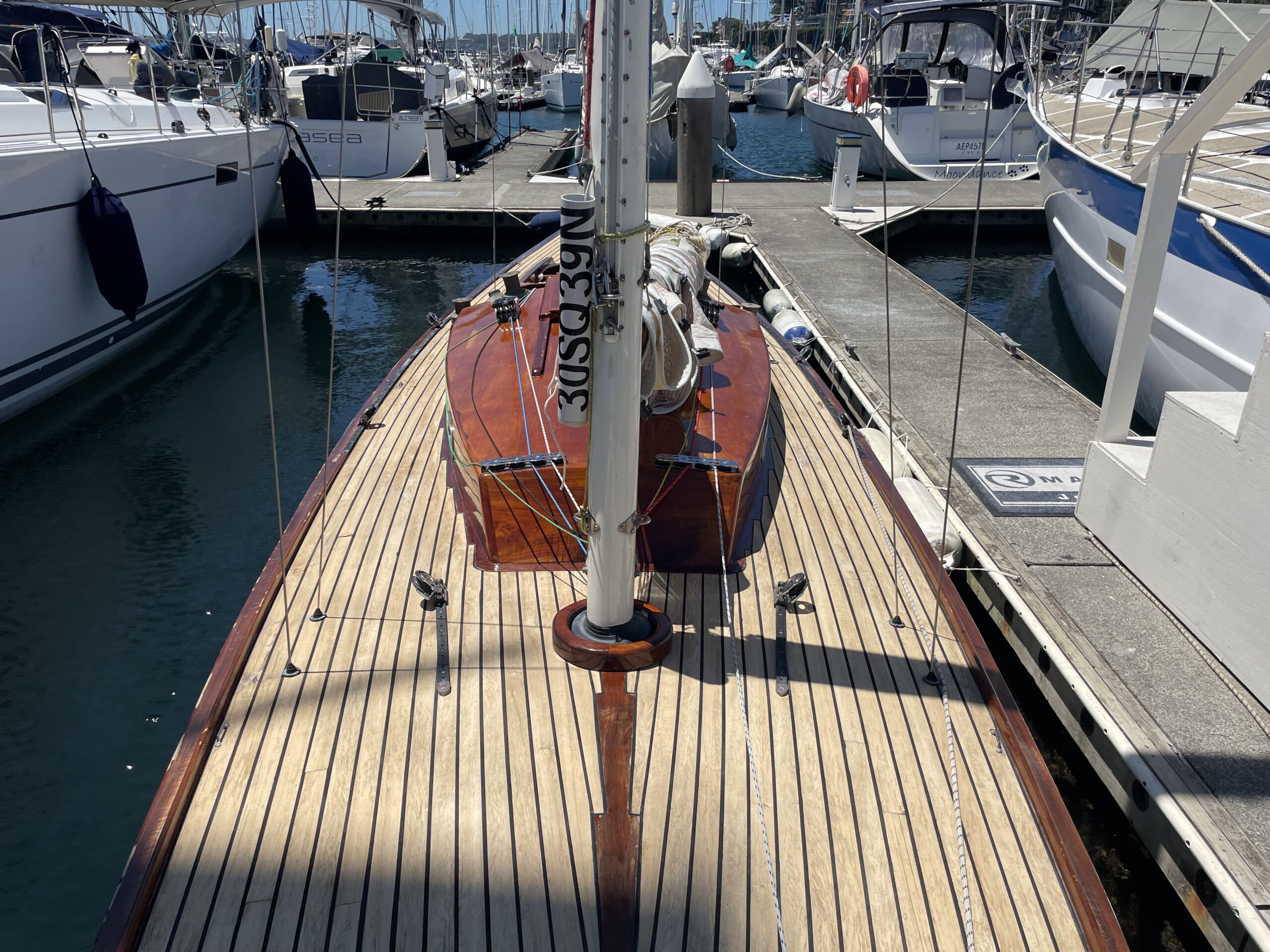

- Deck

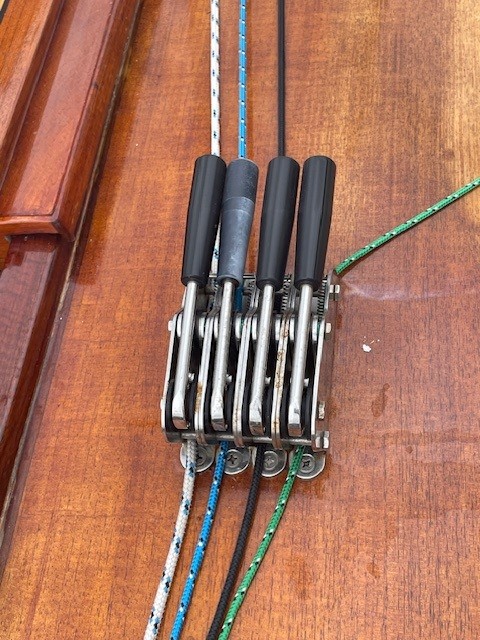

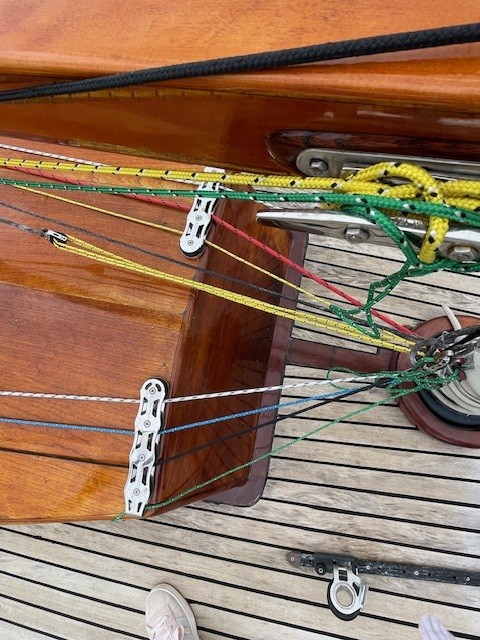

- 2 x primary and 2 x secondary bronze winches. 1 x bronze mainsheet winch mounted at the base of the mast within the cabin. A new Barton mainsheet track system is 3 to 1 or 6 to 1 making it easier to control and fine tune. Barton Ball bearing Mainsheet system has been installed in the cockpit and a new Ronstan series 120 Furler and Swivel is mounted under deck for the A-symetrical Kites.
- Ground Tackle
- 7.5kg Bruce anchor with 6m of 10mm s/s chain and 50m of 12mm nylon rope. All new 2021.

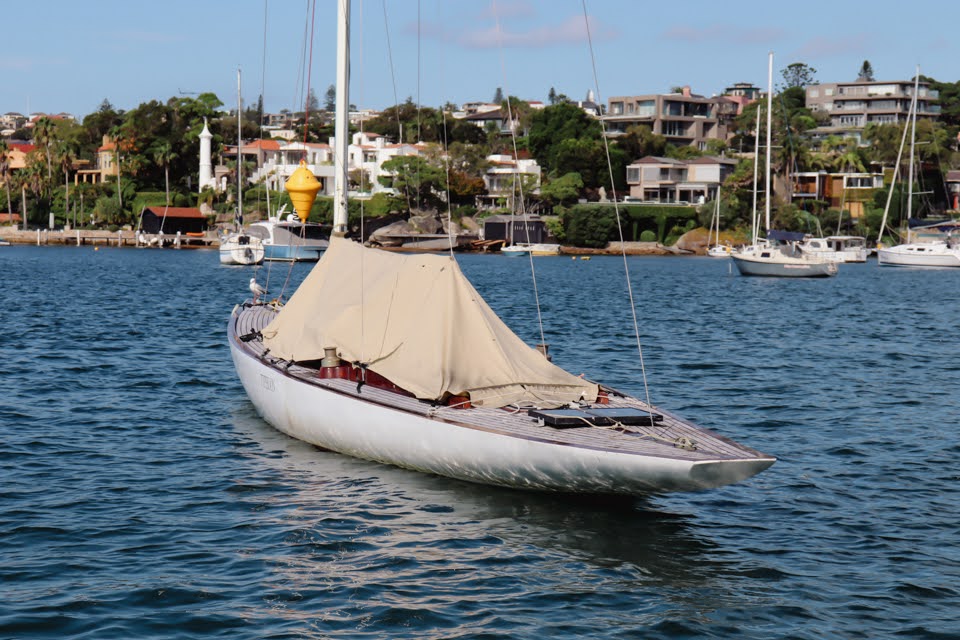

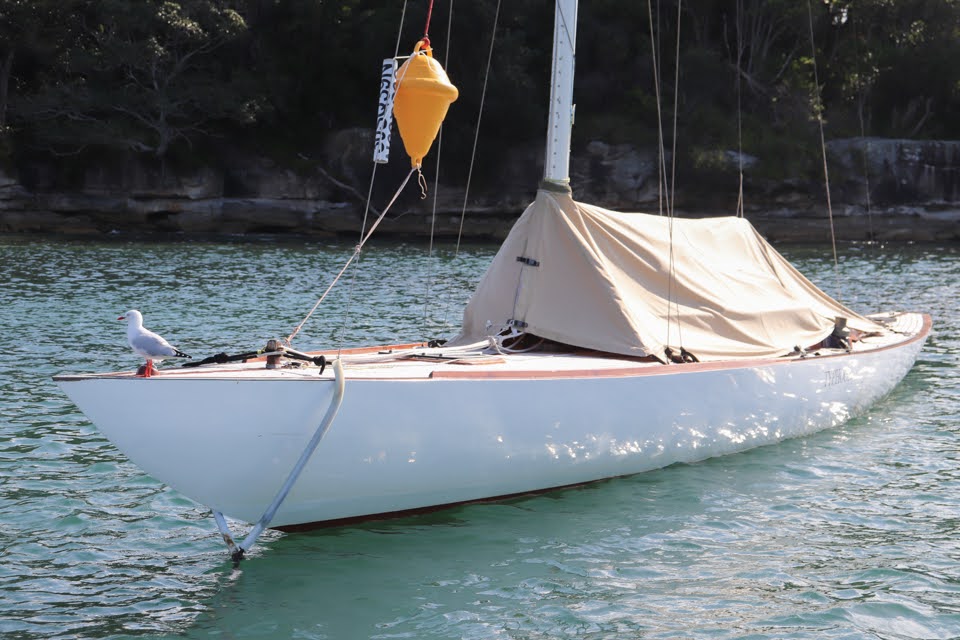

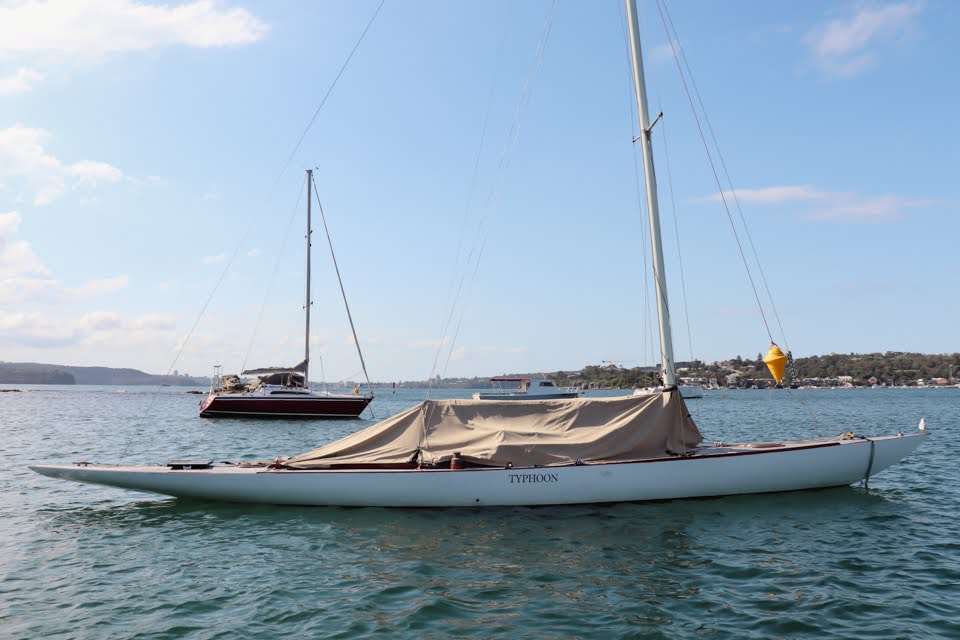

- Covers
- Full covers

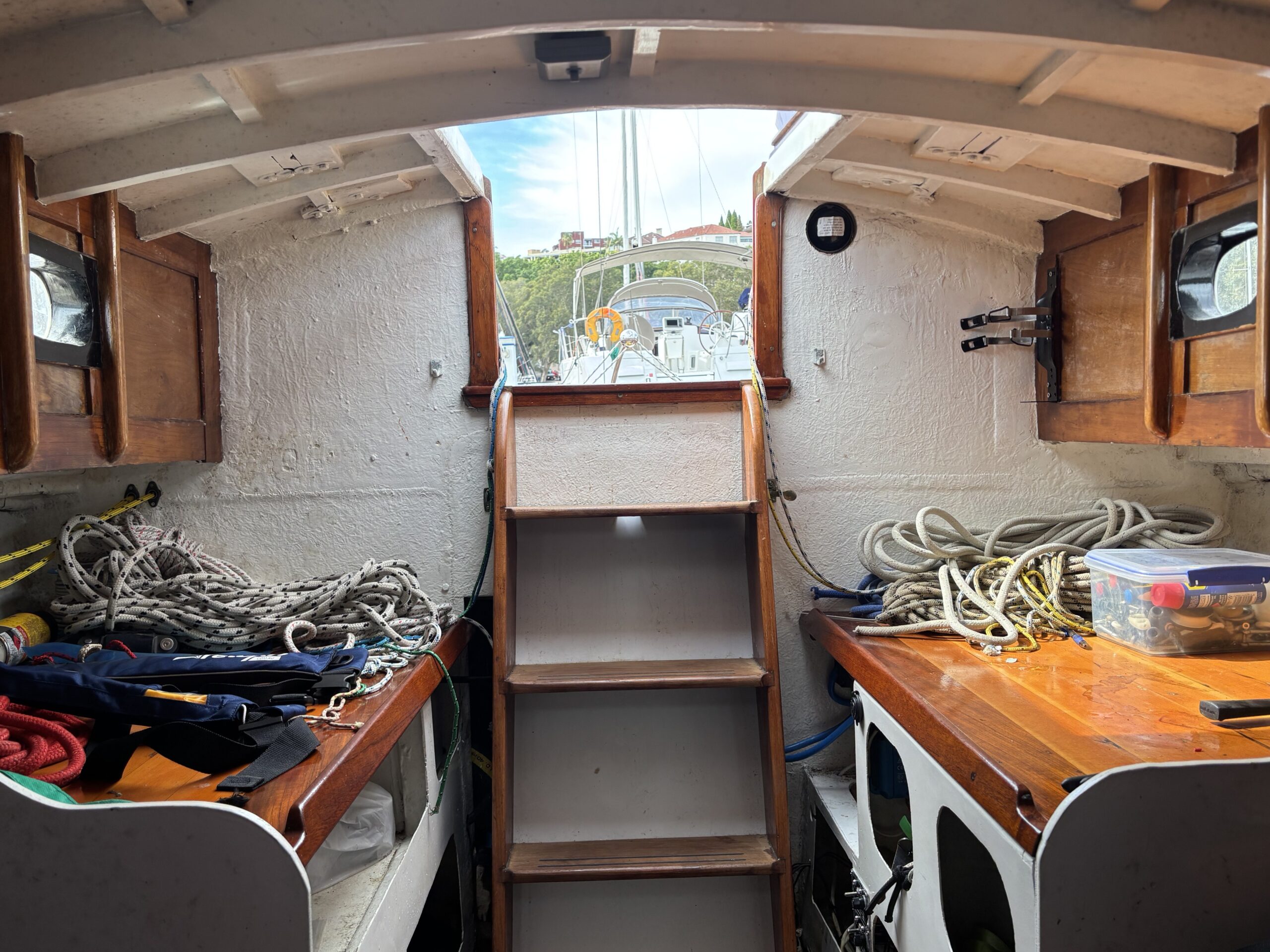

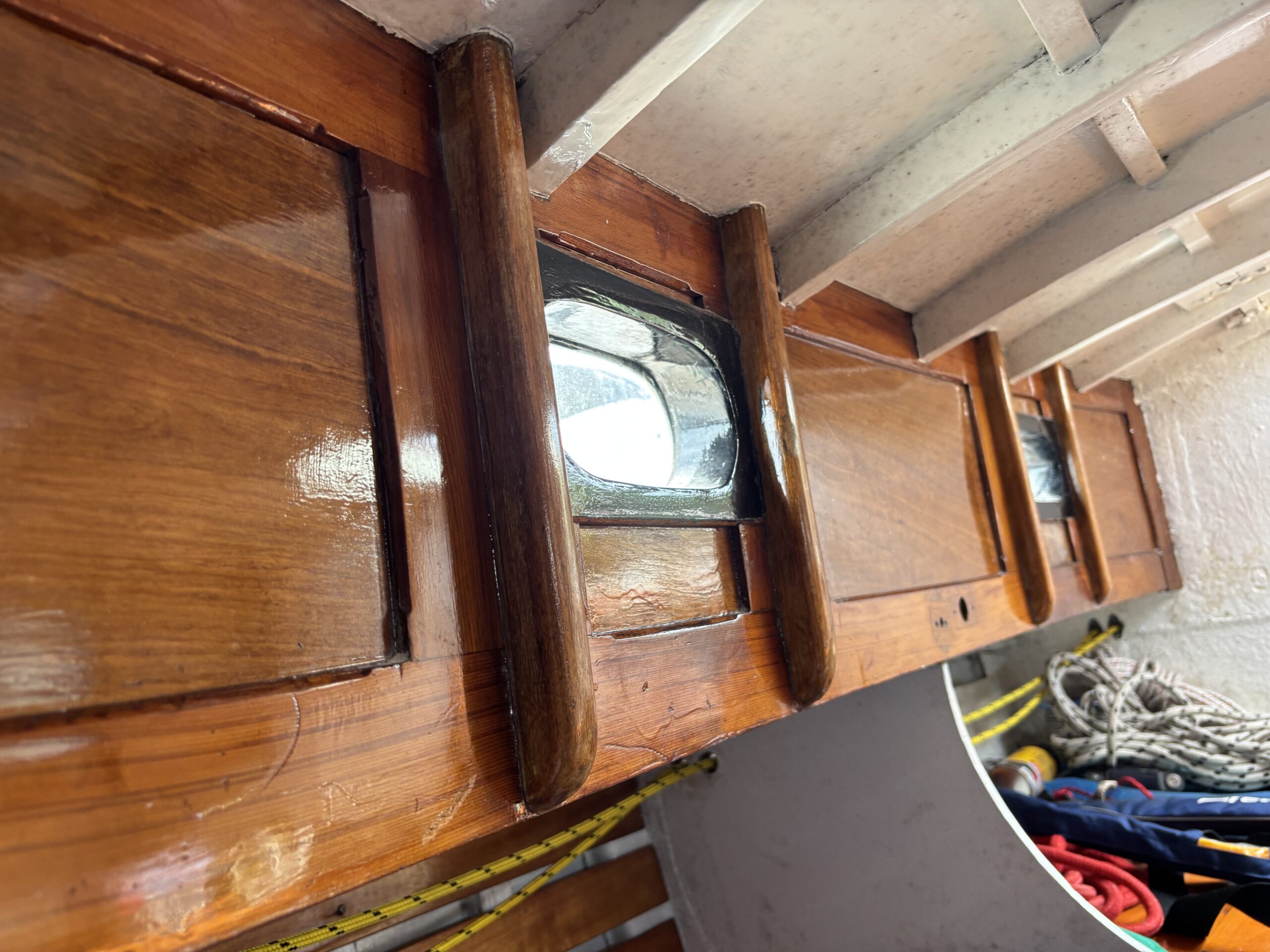

- Accommodation

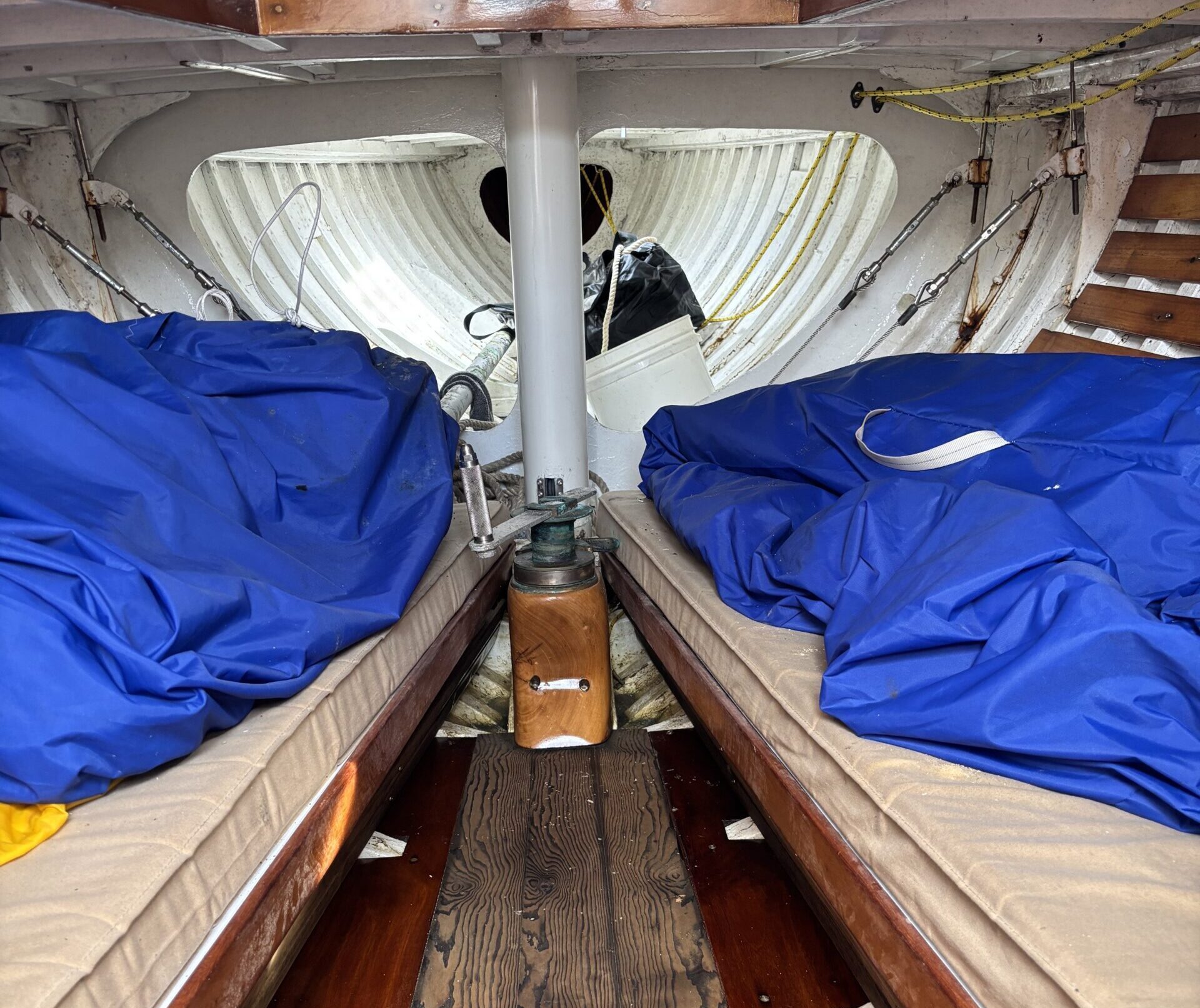

- V berth forward plus 2 settee bunks
- Berths
- 4
- Entertainment
- Lovely seating area aft of the cockpit to relax whilst at anchor or away from the action of the cockpit.
- Safety Gear
- To be audited at time of survey. 3 x new PFD life Jackets (March 2025), New medical kit passed Cat 7 (March 20025), V Sheet, Signalling mirror, 1kg Fire extinguisher (new March 2024).
- Bilge Pumps
- 1 x manual, 2 x electric replaced in June 2021.
- Electrics
- 12v. 2 x sealed Optima 12V 800CCA Blue Top sealed batteries. Charging is by the engine and alternator and a 50W 12V Alvolta Eclipse Mono Solar panel. (Batteries, solar panel, regulator and wiring all new as of June 2021).
- Navigation
- Suunto K-16 small boat racing Compass.

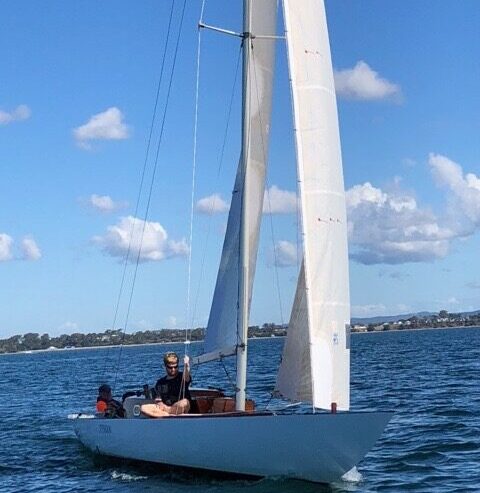

- Sail Inventory

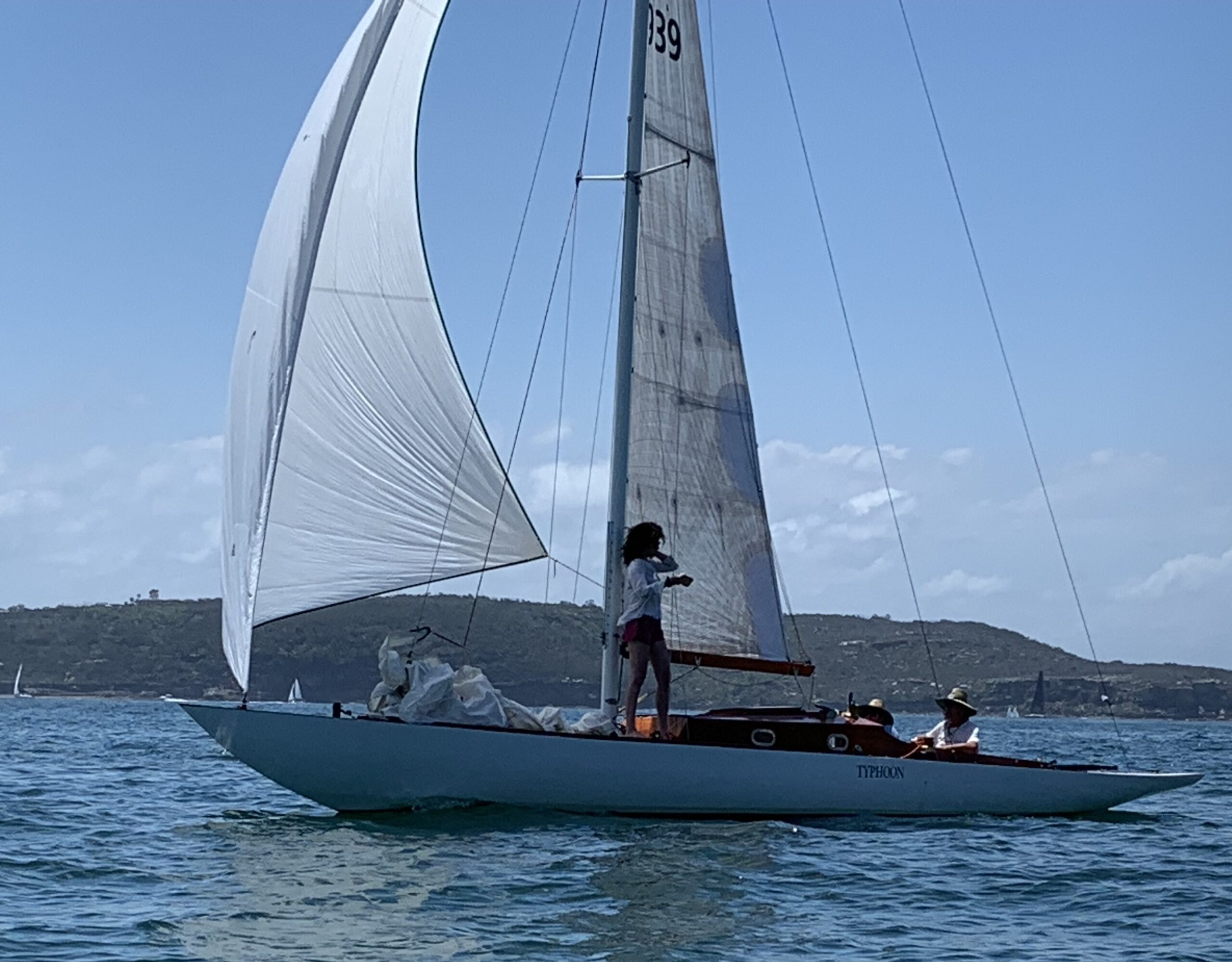

- Northsails; 2 x Genoa #1 and #3, 2 x Furling A-symetrical Spinnakers, under deck Furler which leads straight back to the cockpit making it a perfect set up for single or double handed sailing.

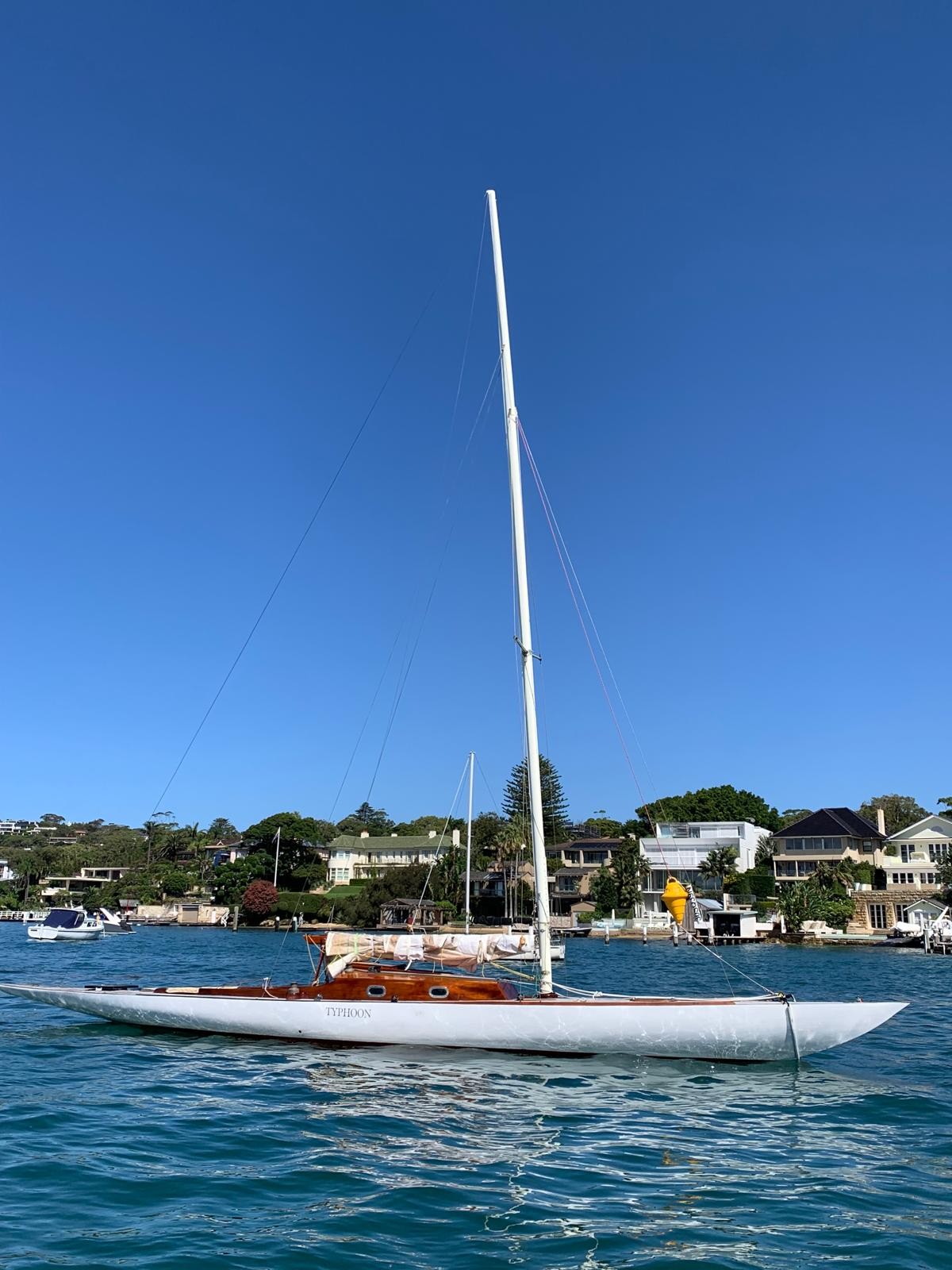

- Mast Rigging

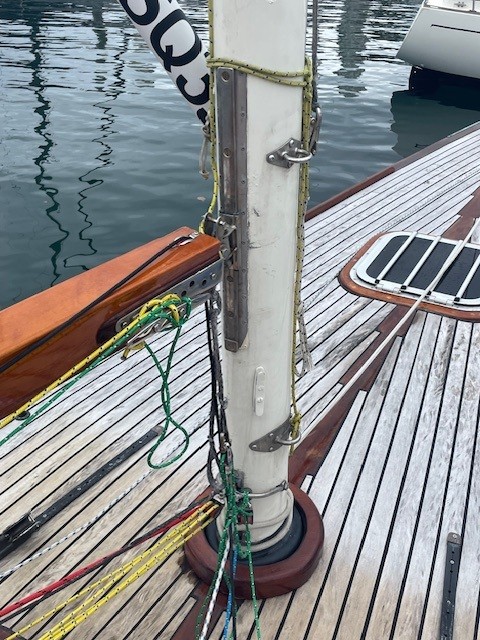

- Aluminum mast, single spreader, fractionally rigged with runners, forestay, lowers and backstay. Boom is new timber/carbon composite constructed in 2021. New standing rigging and all ropes were replaced in May 2021. Standing rigging is 1 by 19. 55mm S/S. Runner is a wheel system and is simple to operate.
- General Remarks
- Refit completed in June 2021 at Deagon Slipways in Brisbane and Typhoon was then sailed from Brisbane to Sydney on her own bottom.
