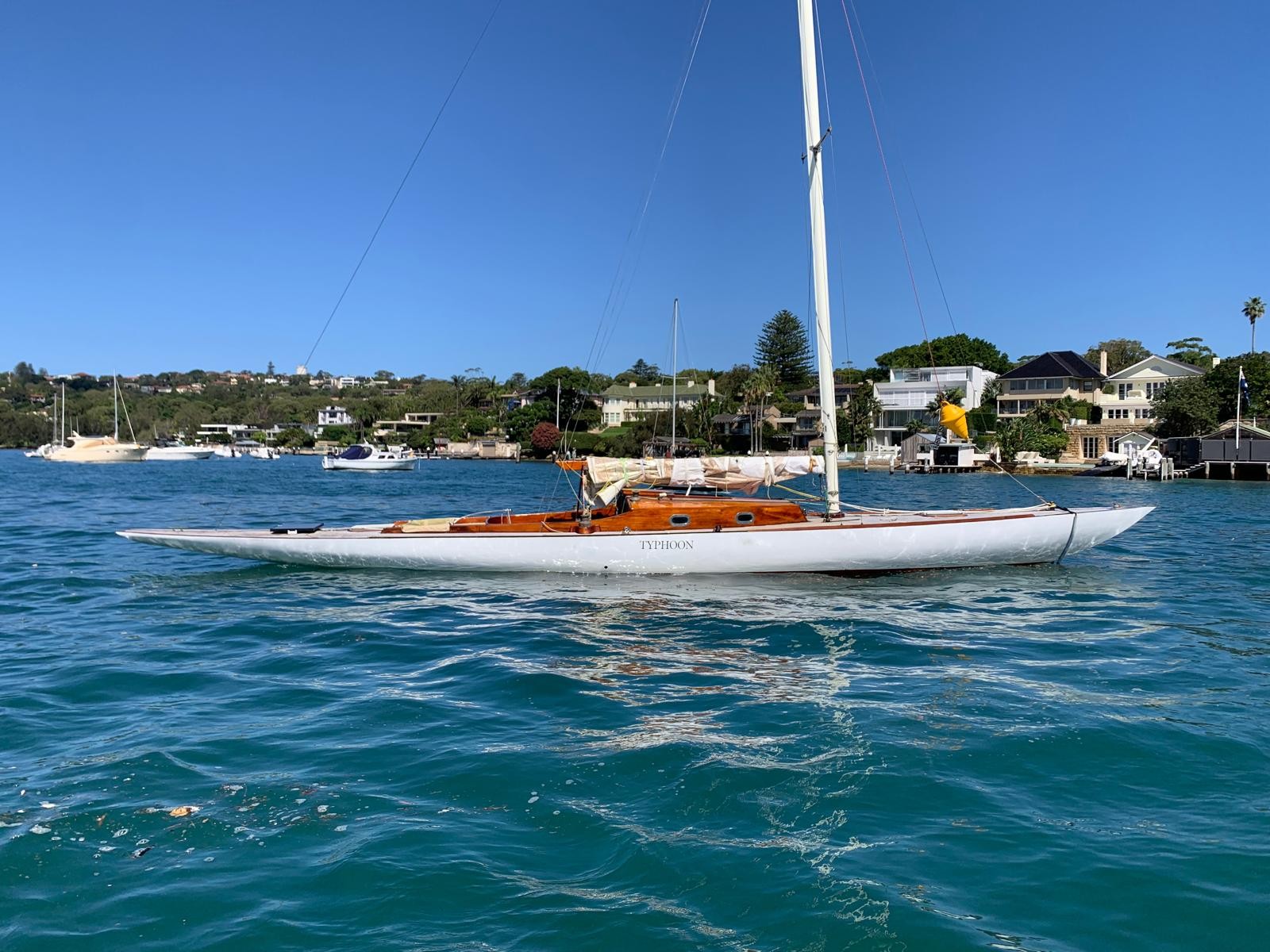

Classic, fast cruising easily handled yacht!

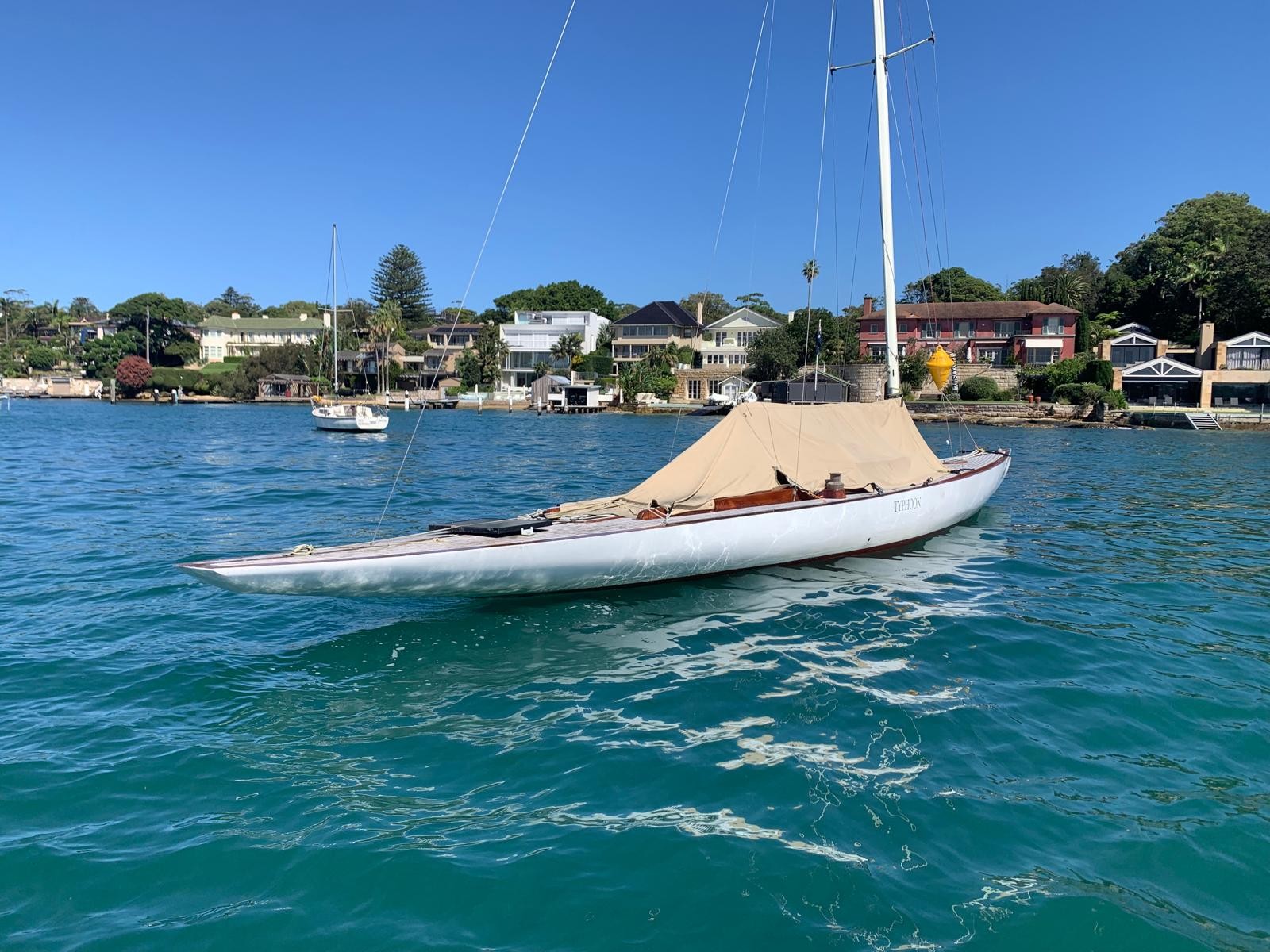

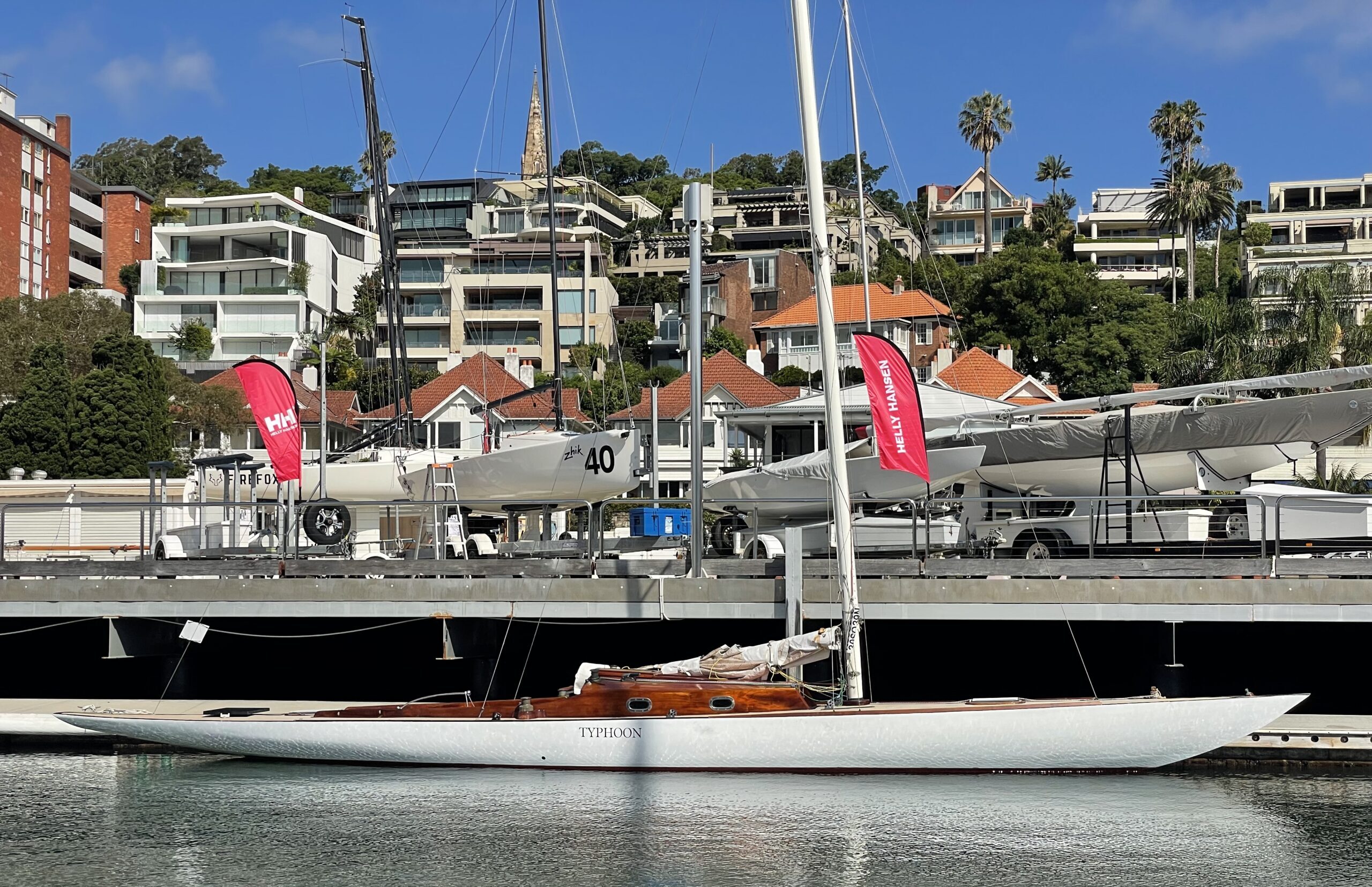

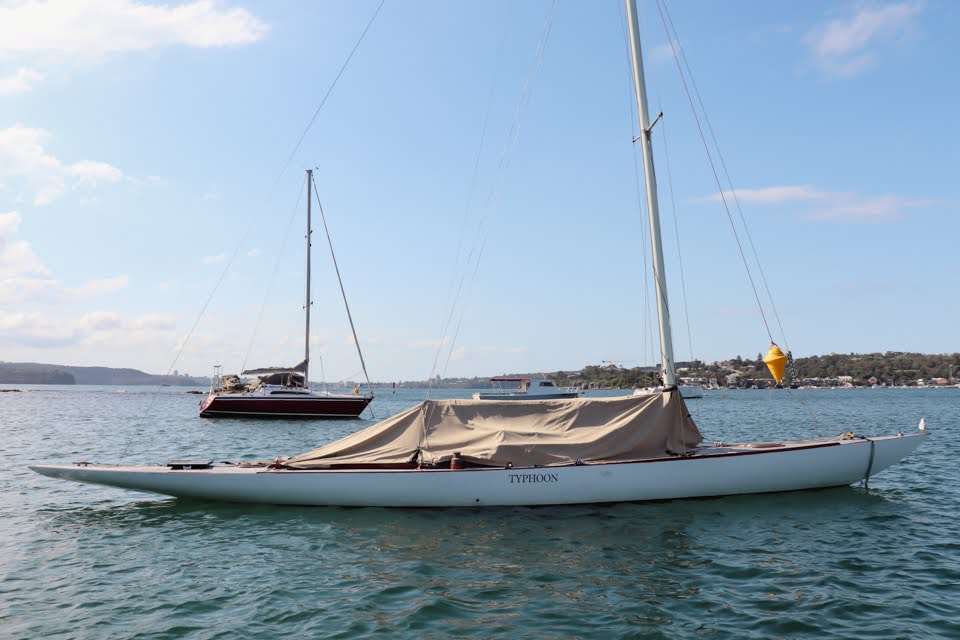

The “30 Square Metre” is a reference to a specific class. They are all very similar in shape. The result is a classic, fast-cruising yacht, easily handled well known for their elegant lines and seaworthiness. The “Square Metre Rule” was adopted by the Royal Swedish YC in 1908. Typhoon is a very nice example, undergoing a substantial refit in June 2021 at Deagon Slipways in Brisbane and then sailed on her own bottom to Sydney. Current overhaul of the Nanni Diesel engine, new batteries, solar panel and deck refreshment make her a great harbour racer and weekend cruiser. An inspection of this classic yacht will not disappoint.
Boat Specs
| Type: | 30 Sqaure Built |
| Year: | 1939 |
| Length: | 13.50m |
| Beam: | 2.10m |
| Draft: | 1.90m |
| Displacement: | 3,200 kg (approx) |
| Builder: | Les Steel, Port Macquarie NSW |
| Location: | Sydney |
| Price: | $ 42,500 |
Boat Inventory
- Reference Number
- Typhoon
- Make
- 30 Square Built
- Hull Material
- Oregon on Spotted Gum ribs, Copper fastened. Sanded and re-splined in 2021.
- Length
- 13.50
- Price
- $ 42,500
- Region
- Sydney
- Location
- Sydney NSW, Australia
- Vessel Name
- Typhoon
- Launch Year
- 1939
- Beam
- 2.10m
- Draft
- 1.90m
- Displacement
- 3,200kg

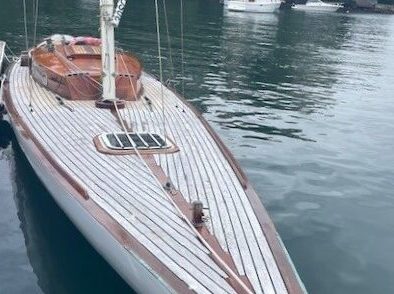

- Deck Material

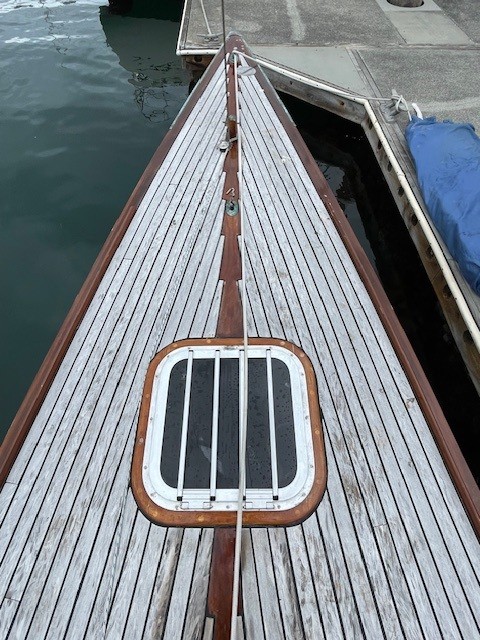

- Marine grade plywood on Oregon beams with 12mm Beech and Teak deck.
- Keel / balast
- Lead.
- HIN
- AUWWA205821V2.
- Builder
- Les Steel, Port Macquarie NSW
- Registration Number
- 30SQ39N.
- Engine Make
- Nanni N2.10

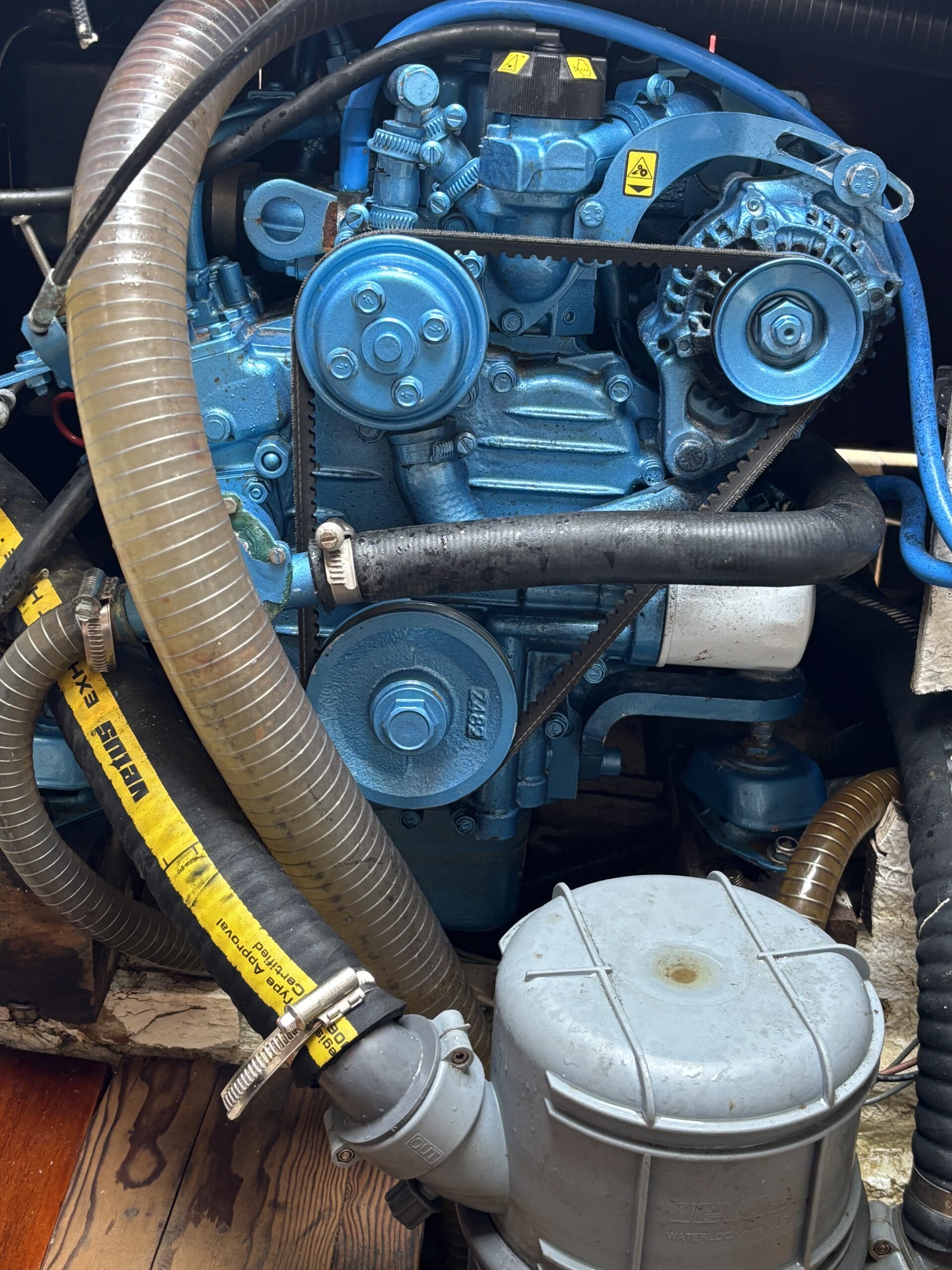

- Engine

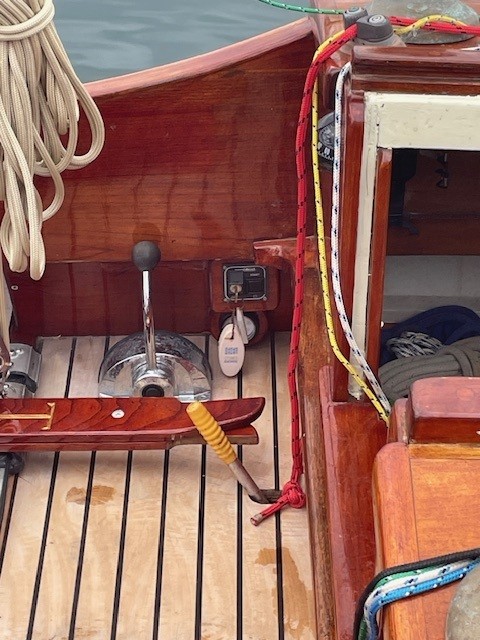

New in 2021 - Nanni N2.10 – 10 hsp Diesel (NR: 4LA5440 KTA20071858 Code: N2010E171). Gear Box is a Twin Disc 2:0, Model: TMC40PAC, Serial: 2463050.
- No of Engines
- 1
- Engine Hours
- 200 hrs approx
- Horsepower
- 10 hsp
- Fuel Capacity
- 20 Ltrs
- Fuel Type
- Diesel
- Propulsion
- 2 bladed 13 x 10R folding propellor on a 19mm duplex shaft. New Cutless bearings 2021.

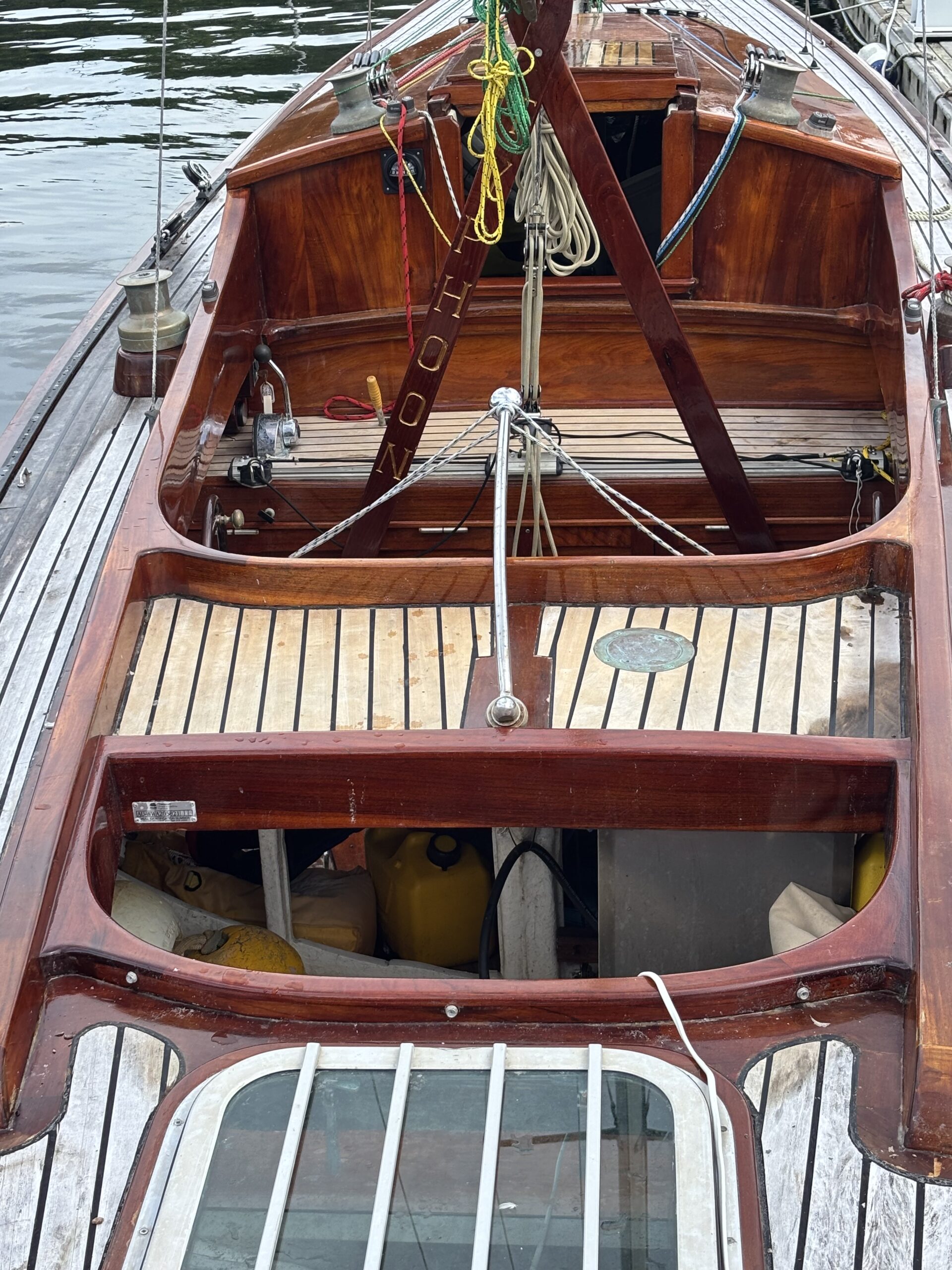

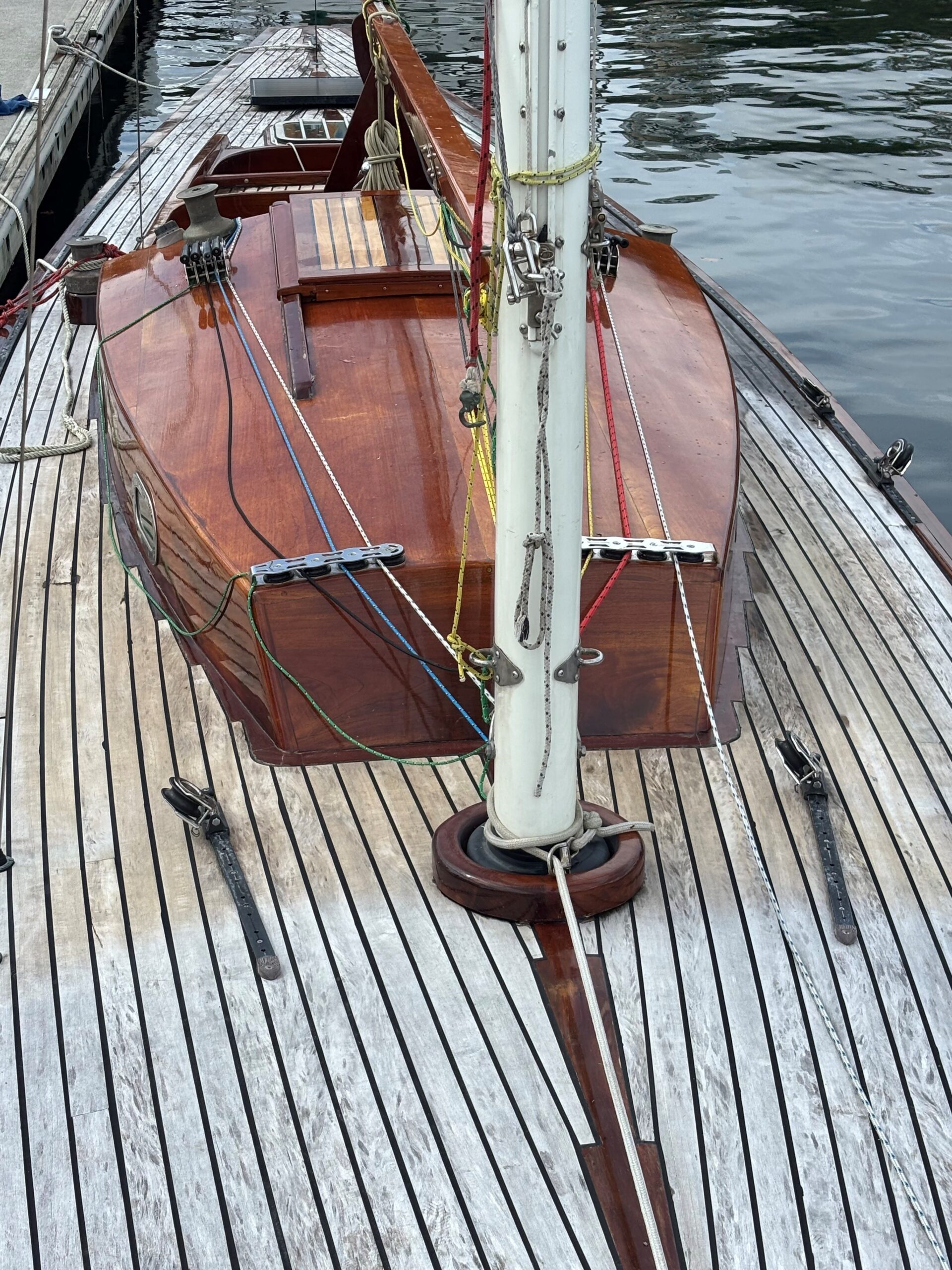

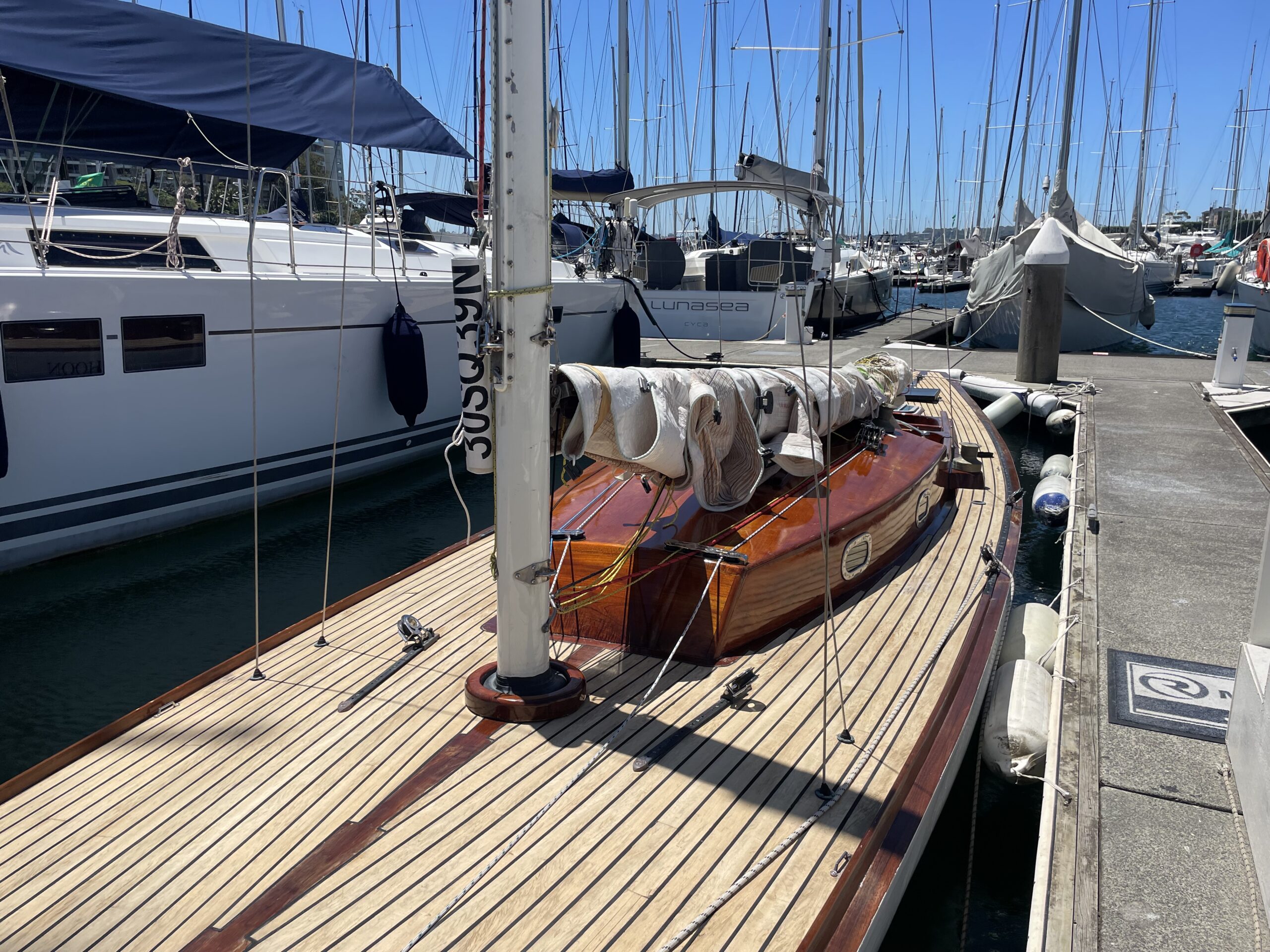

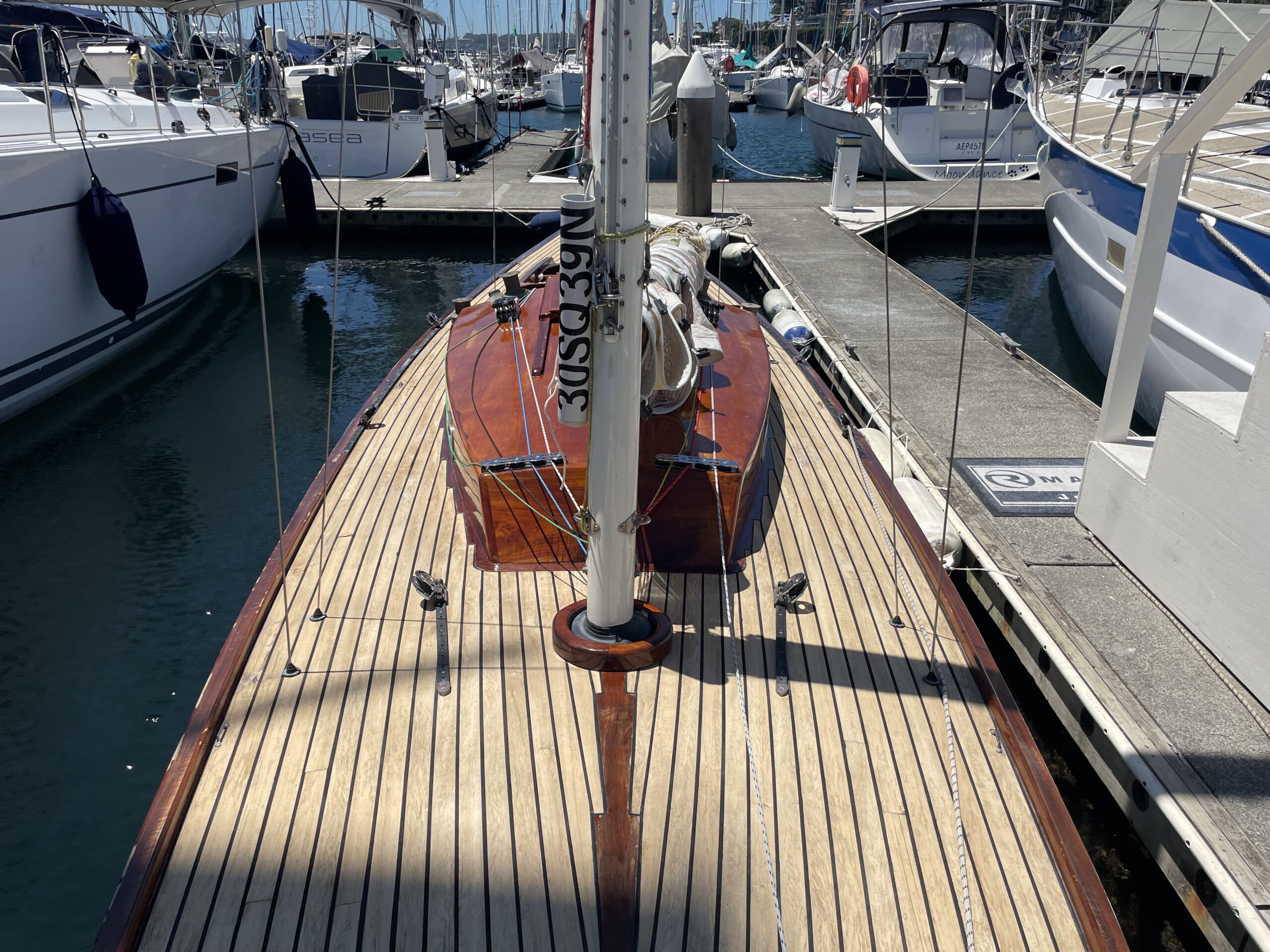

- Deck

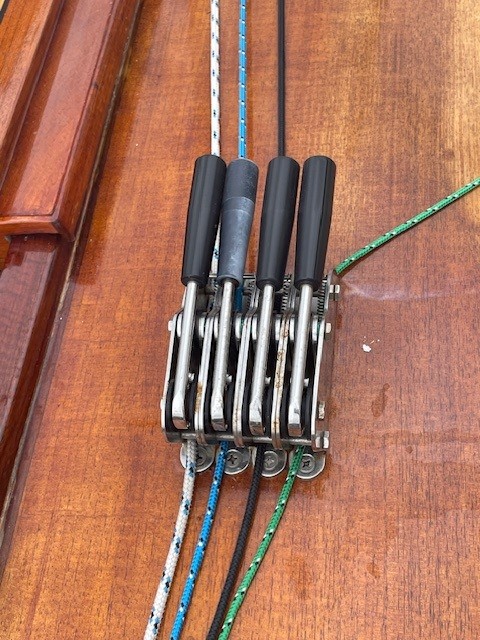

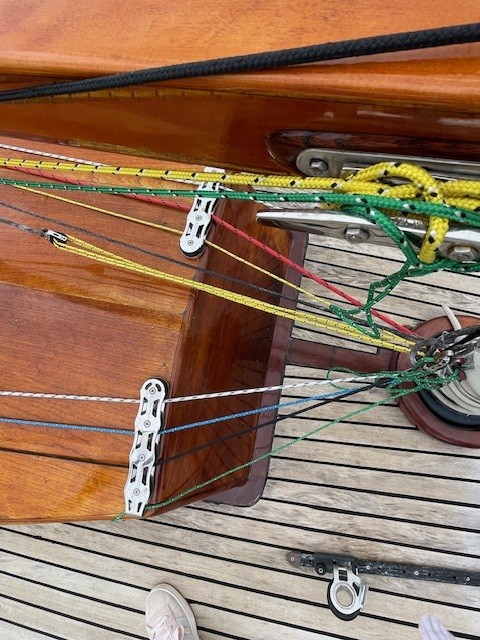

- 2 x primary and 2 x secondary bronze winches. 1 x bronze mainsheet winch mounted at the base of the mast within the cabin. A new Barton mainsheet track system is 3 to 1 or 6 to 1 making it easier to control and fine tune. Barton Ball bearing Mainsheet system has been installed in the cockpit and a new Ronstan series 120 Furler and Swivel is mounted under deck for the A-symetrical Kites.
- Ground Tackle
- 7.5kg Bruce anchor with 6m of 10mm s/s chain and 50m of 12mm nylon rope. All new 2021.
- Covers

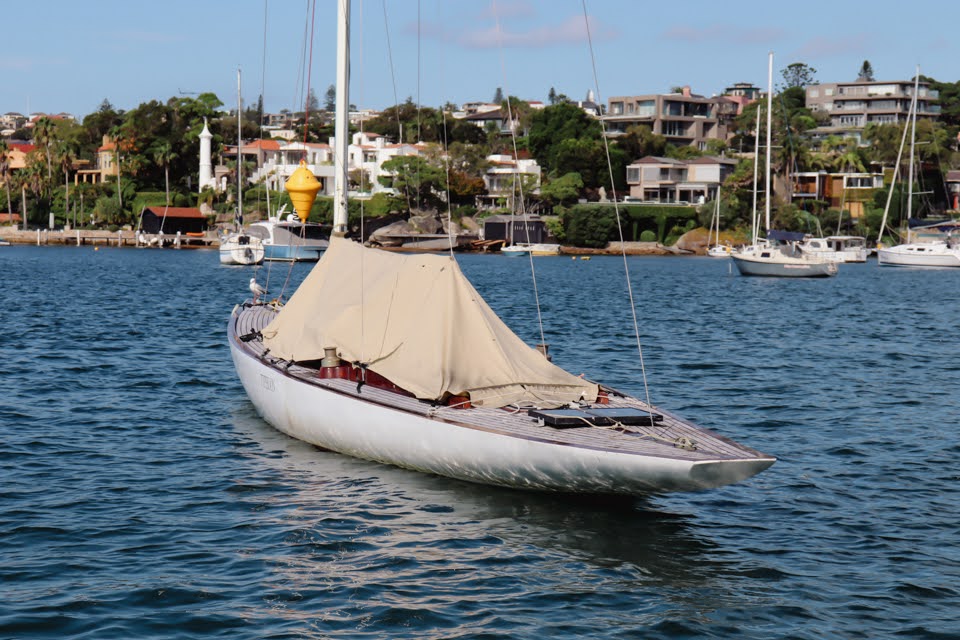

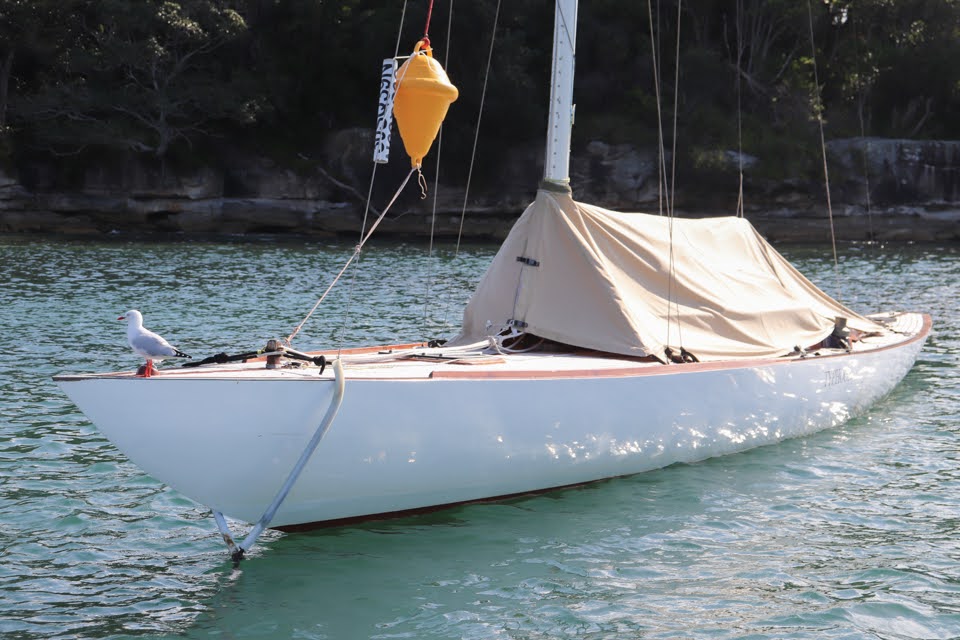

- Full covers

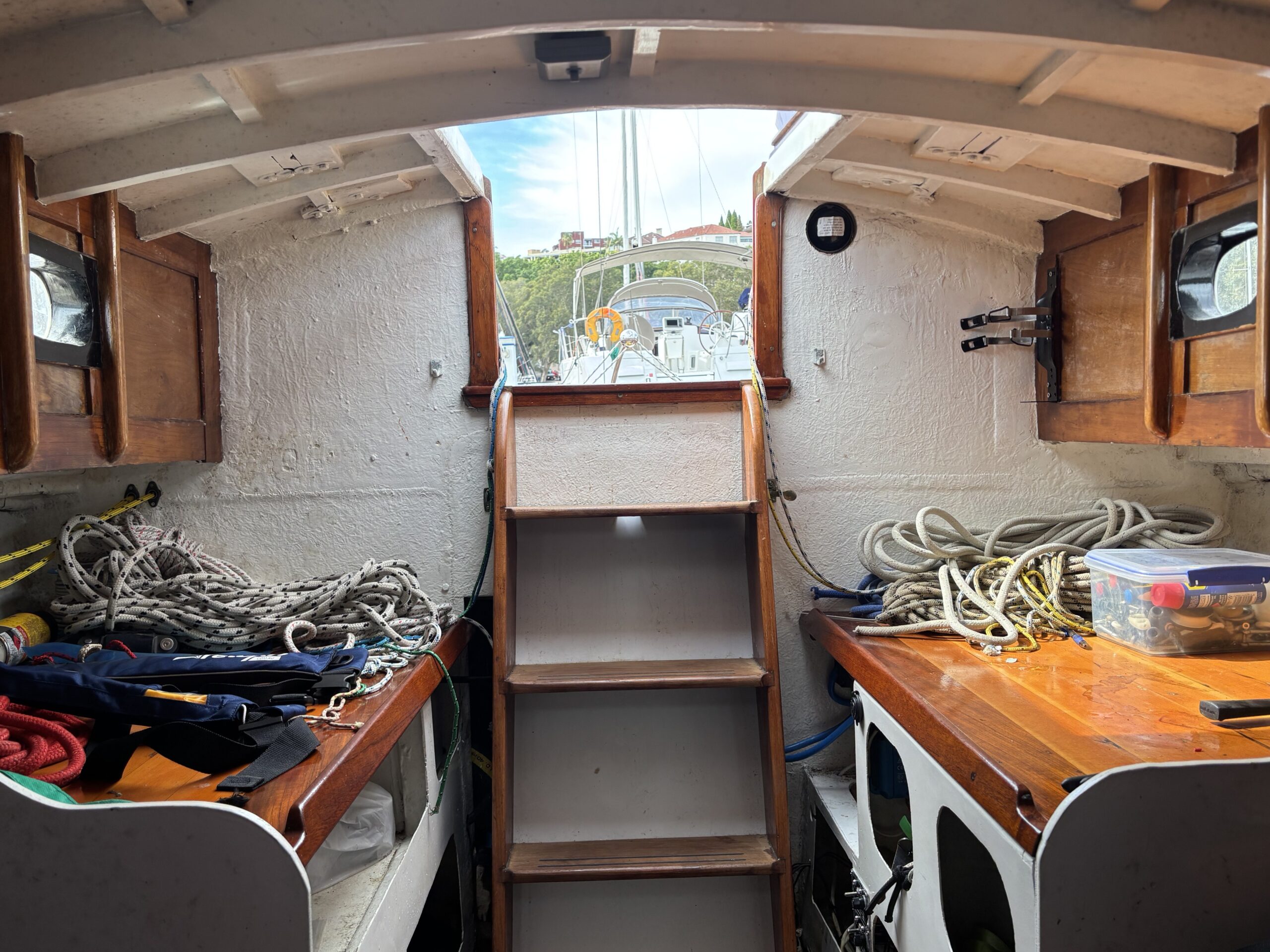

- Accommodation

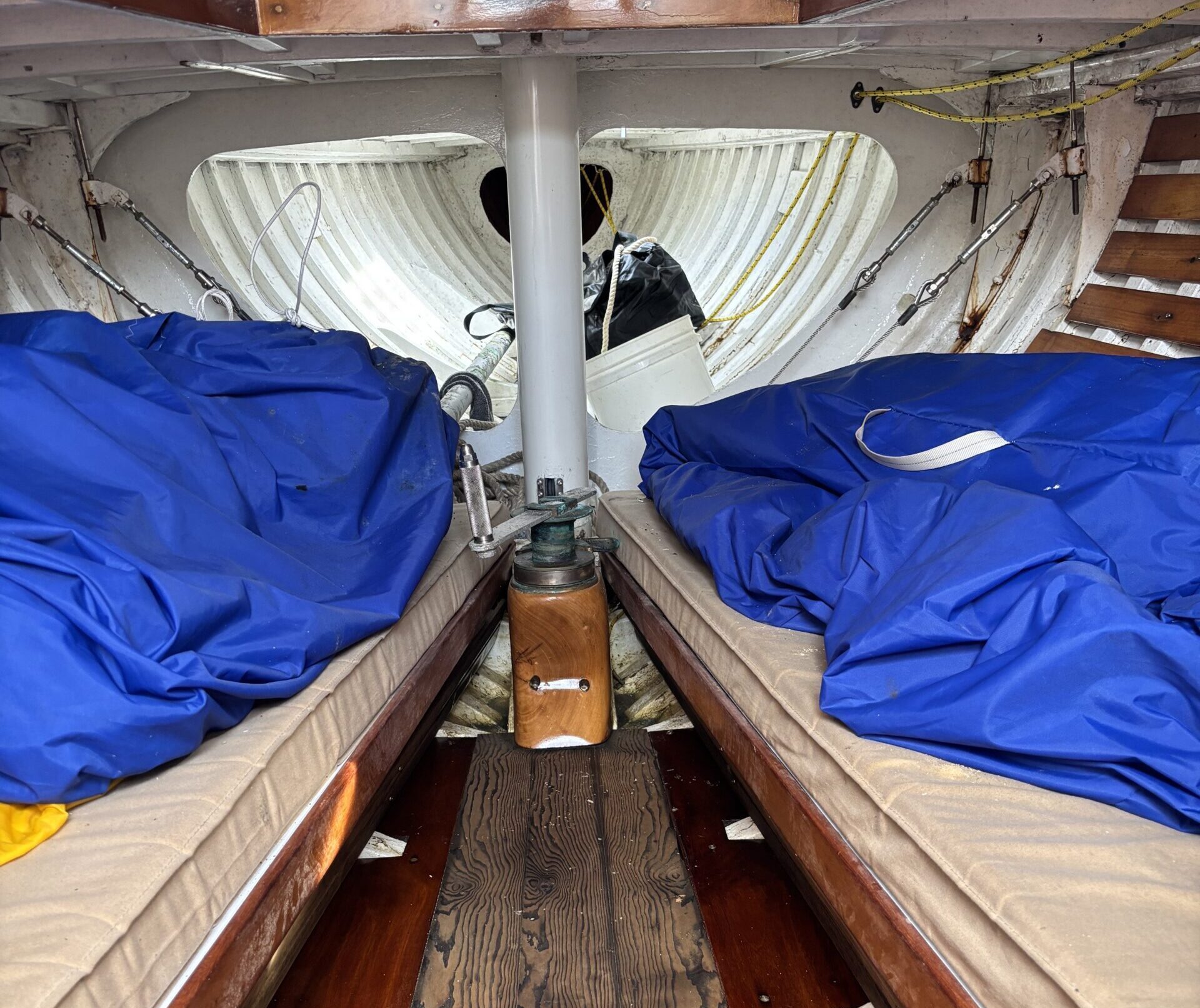

- V berth forward plus 2 settee bunks
- Berths
- 4
- Entertainment
- Lovely seating area aft of the cockpit to relax whilst at anchor or away from the action of the cockpit.
- Safety Gear
- To be audited at time of survey. 3 x new PFD life Jackets (March 2025), New medical kit passed Cat 7 (March 20025), V Sheet, Signalling mirror, 1kg Fire extinguisher (new March 2024).
- Bilge Pumps
- 1 x manual, 2 x electric replaced in June 2021.
- Electrics
- 12v. 2 x sealed Optima 12V 800CCA Blue Top sealed batteries. Charging is by the engine and alternator and a 50W 12V Alvolta Eclipse Mono Solar panel. (Batteries, solar panel, regulator and wiring all new as of June 2021).
- Navigation
- Suunto K-16 small boat racing Compass.

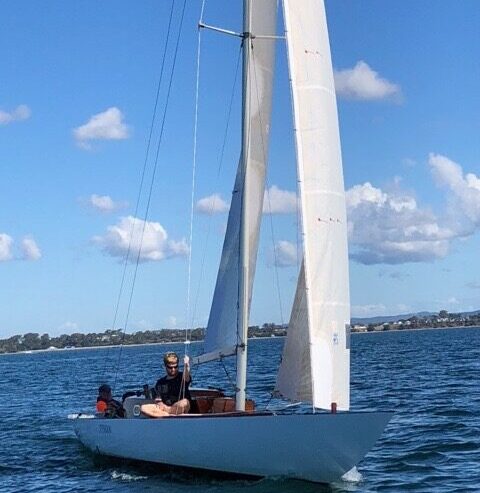

- Sail Inventory

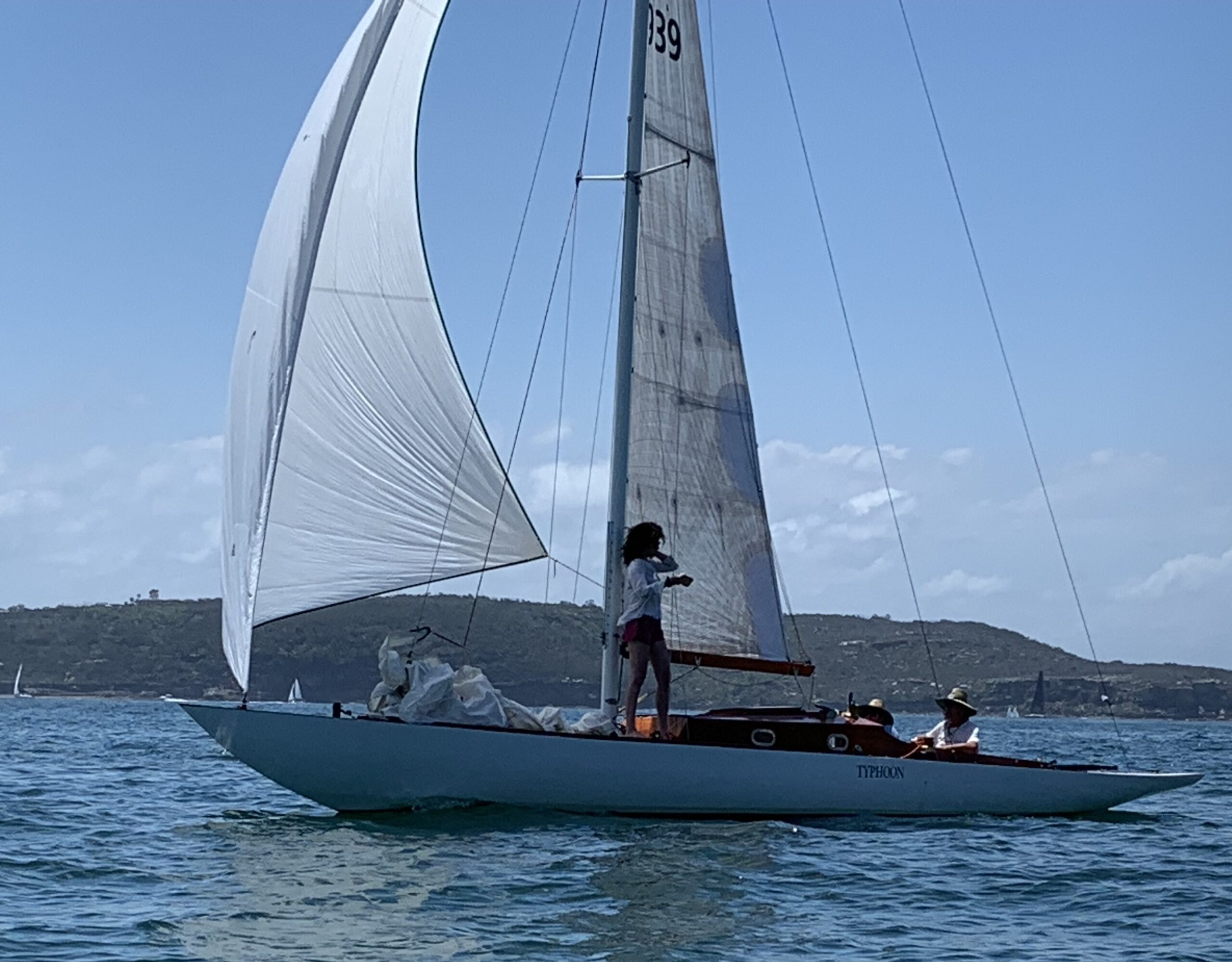

- Northsails; 2 x Genoa #1 and #3, 2 x Furling A-symetrical Spinnakers, under deck Furler which leads straight back to the cockpit making it a perfect set up for single or double handed sailing.

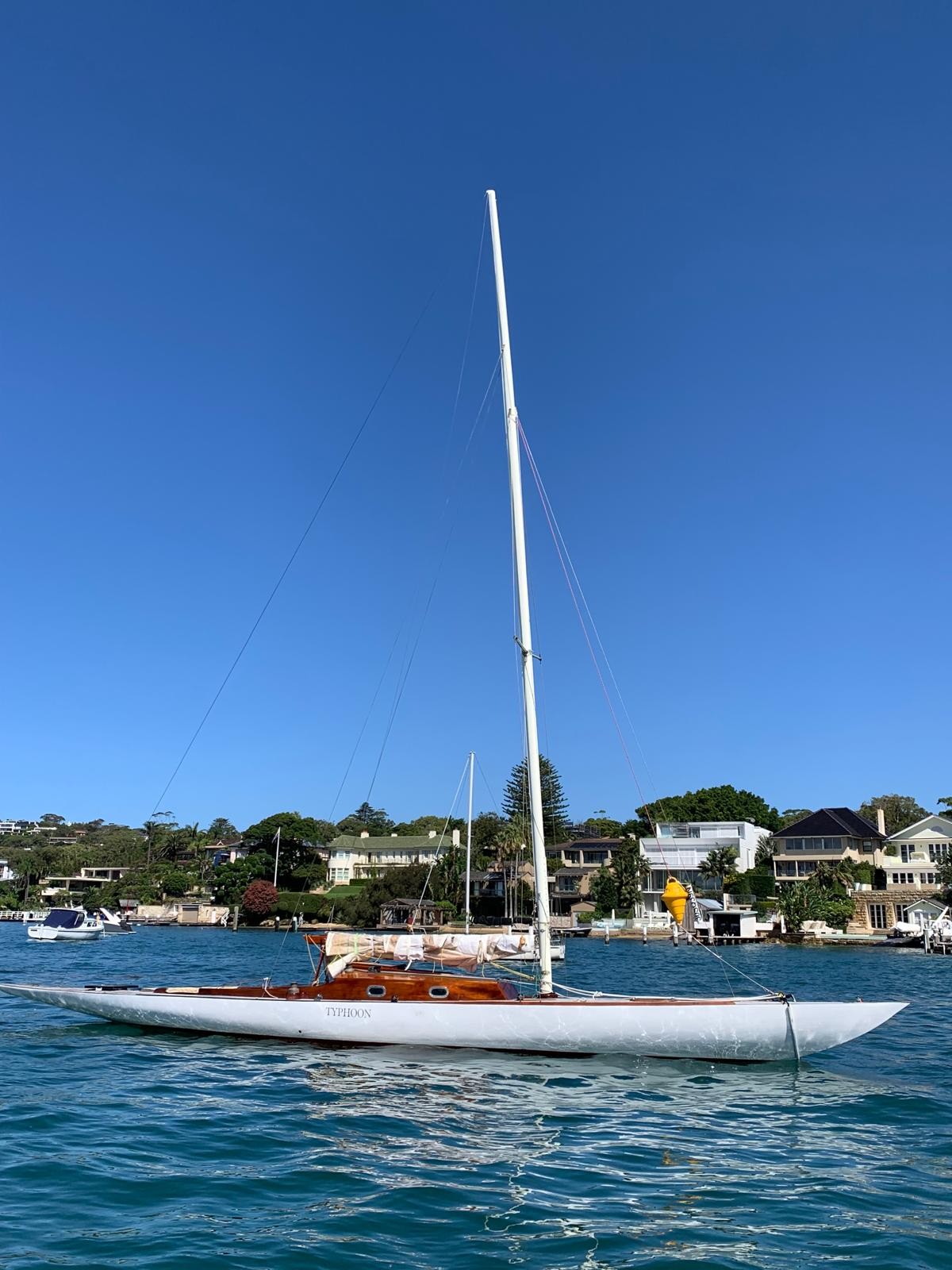

- Mast Rigging

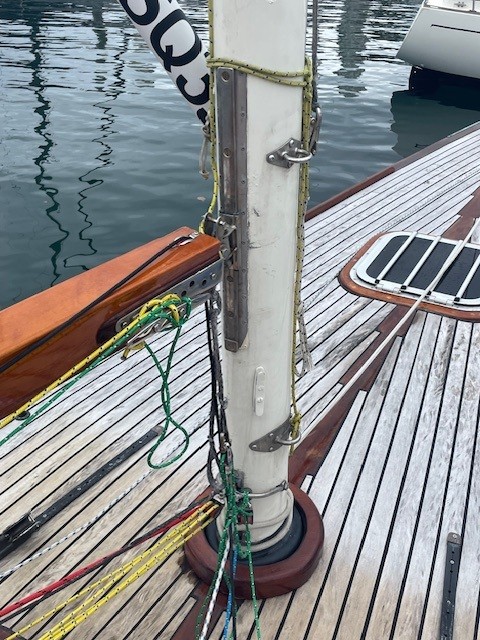

- Aluminum mast, single spreader, fractionally rigged with runners, forestay, lowers and backstay. Boom is new timber/carbon composite constructed in 2021. New standing rigging and all ropes were replaced in May 2021. Standing rigging is 1 by 19. 55mm S/S. Runner is a wheel system and is simple to operate.
- General Remarks
- Refit completed in June 2021 at Deagon Slipways in Brisbane and Typhoon was then sailed from Brisbane to Sydney on her own bottom.
